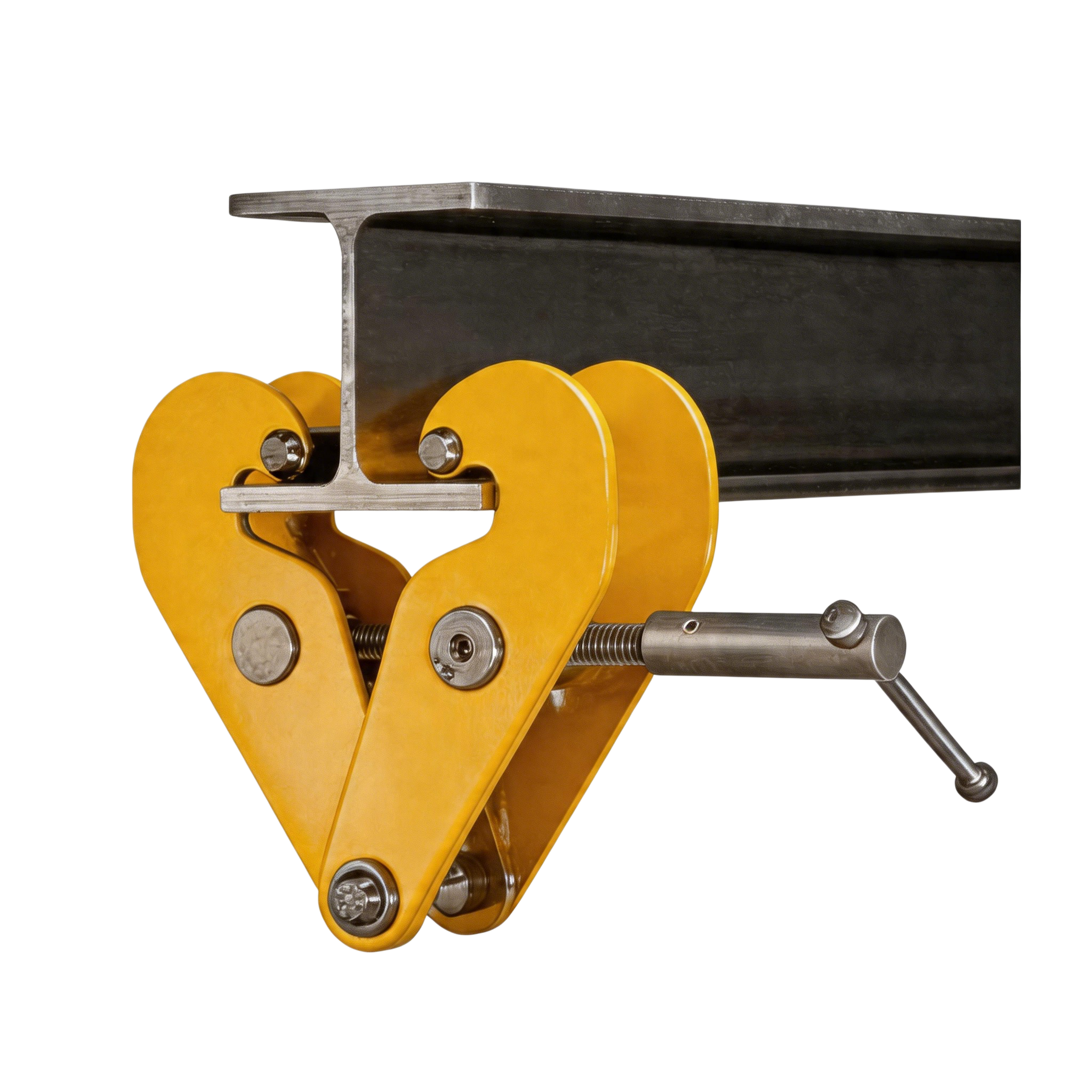

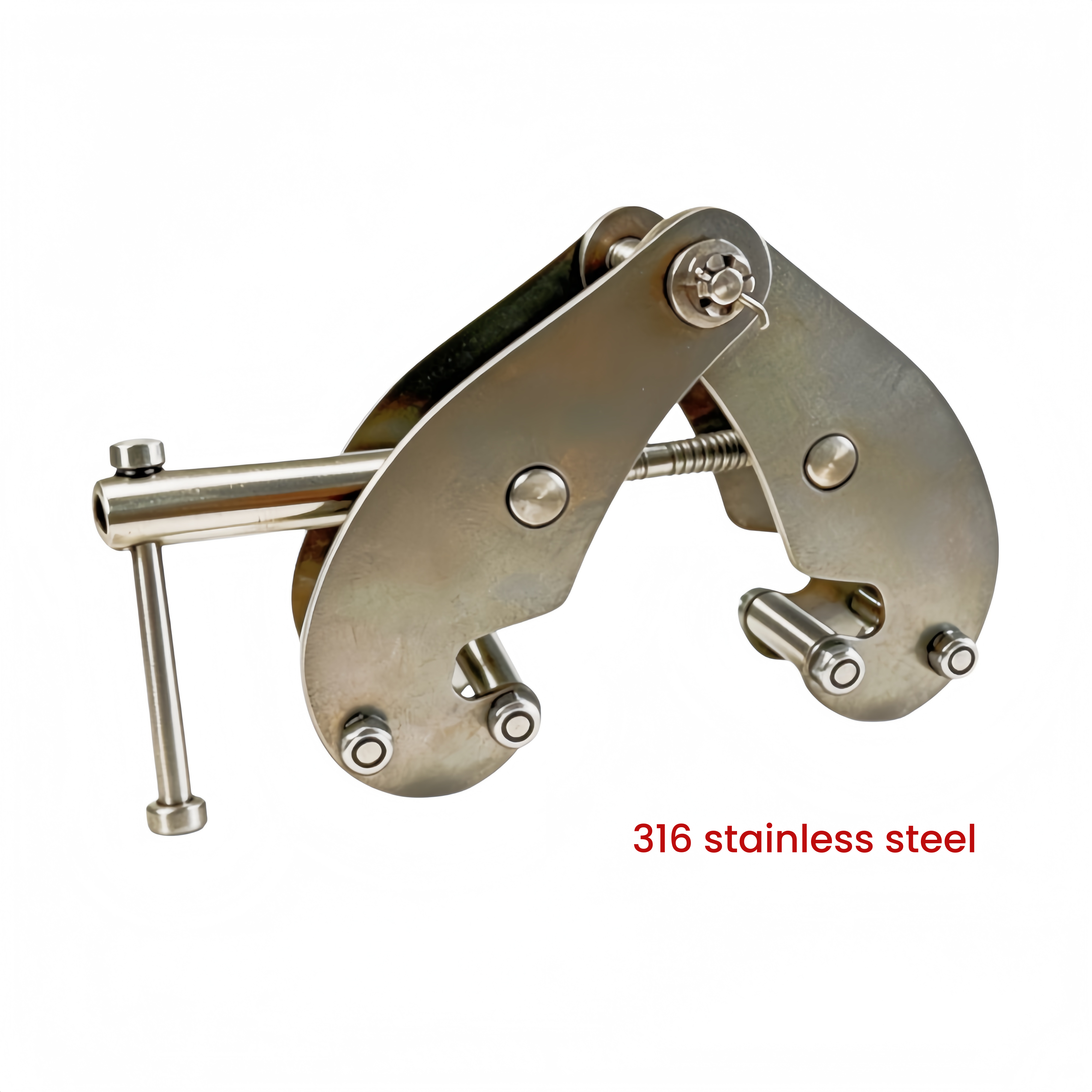

Beam clamp (316 SS available)

This beam clamp is suitable for a wide range of applications, including factories, oil gas, clean energy, clean rooms, and more.
Flexible application due to wide adjustment range.

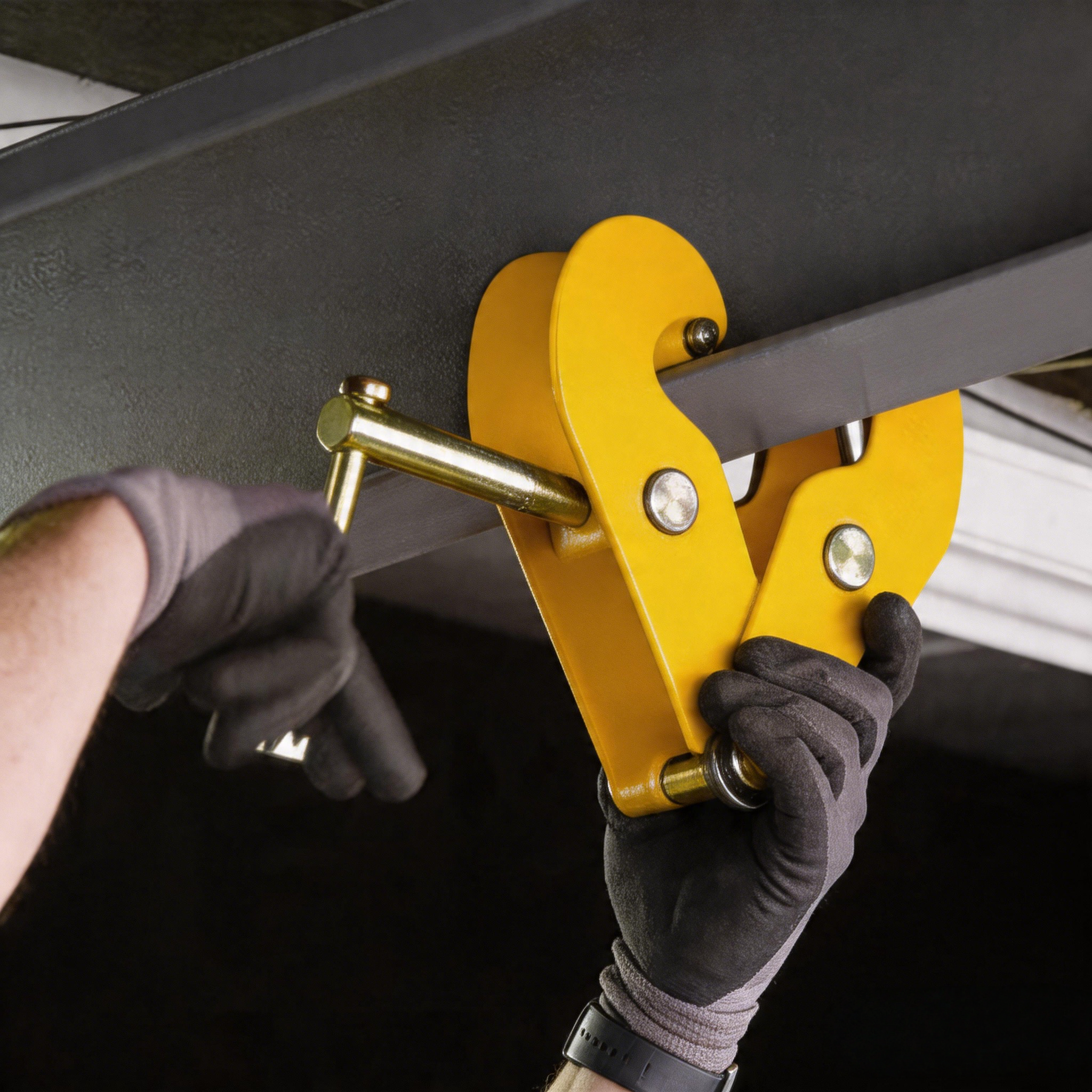

The central threaded spindle allows easy attachment and a safe and secure grip.
The spindle can be secured against loosening.

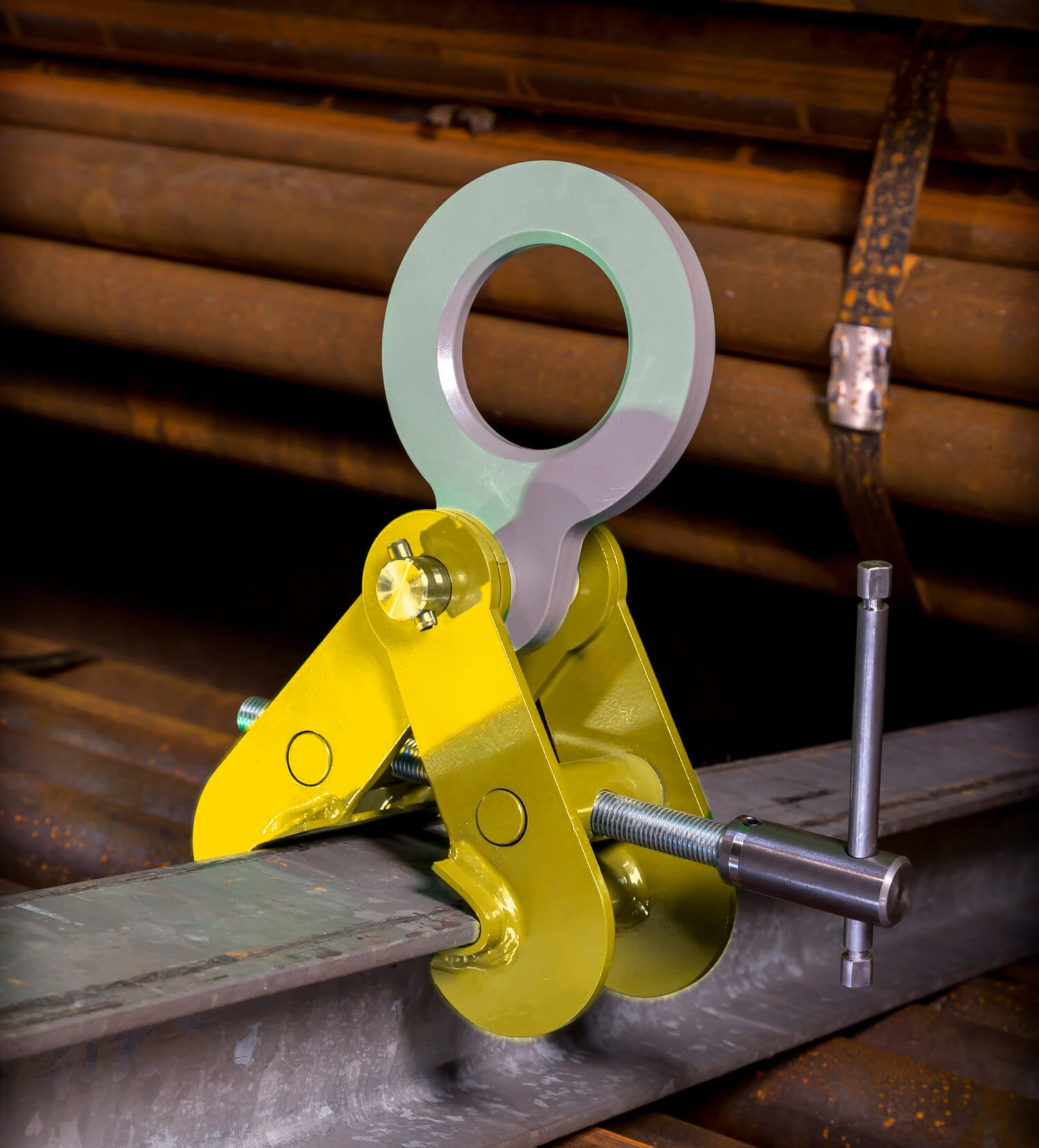

• Shackle suspension point.
• Designed to accommodate a wide range of steel angle sections.
• Robust construction.
• These units meet and exceed all the requirements within BS EN 13155:2003+A2:2009 and AS4991.

Warning:
Ensure the handle is fully tight before commencing operation.

Model BC 1:
• Capacity: 1000kg.
• M Beam Flange Width: 75-230mm.
• Weight: 3.8kg.
• Dimensions (mm):
A: min/max 115/150, A1: 78, A2: 246, B1: 186, B2: 350,
b1: 75, b2: 230, C: 50, D: 4, E: 215, F1: 34, F2: 17,
G1: 82, G2: 44, H: 20, J1: 14, J2: 21, K1: 48, K2: 31, L: 84

Model BC 2:
• Capacity: 2000kg.
• M Beam Flange Width: 75-230mm.
• Weight: 4.6kg.
• Dimensions (mm):
A: min/max 115/150, A1: 78, A2: 246, B1: 186, B2: 350,
b1: 75, b2: 230, C: 50, D: 6, E: 215, F1: 35, F2: 18,
G1: 82, G2: 44, H: 20, J1: 14, J2: 21, K1: 50, K2: 32, L: 94.

Model BC 3:
• Capacity: 3000kg.
• M Beam Flange Width: 80-320mm.
• Weight: 9.2kg.
• Dimensions (mm):
A: min/max 180/225, A1: 80, A2: 320, B1: 232, B2: 455, b1: 80, b2: 320, C: 70, D: 8, E: 255, F1: 35, F2: 21, G1: 120, G2: 75, H: 22, J1: 30, J2: 34, K1: 60, K2: 40, L: 122.

Model BC 5:
• Capacity: 5000kg.
• M Beam Flange Width: 90-320mm.
• Weight: 11.0kg.
• Dimensions (mm):
A: min/max 180/225, A1: 90, A2: 310, B1: 242, B2: 445, b1: 90, b2: 310, C: 70, D: 10, E: 255, F1: 35, F2: 21, G1: 116, G2: 75, H: 28, J1: 30, J2: 34, K1: 60, K2: 42, L: 129.

Model BC 10:
• Capacity: 10000kg.
• M Beam Flange Width: 90-320mm.
• Weight: 17.2kg.
• Dimensions (mm): A: min/max 175/220, A1: 90, A2: 320, B1: 268, B2: 480, b1: 90, b2: 320, C: 70, D: 14, E: 275, F1: 35, F2: 20, G1: 110, G2: 66, H: 38, J1: 34, J2: 35, K1: 60, K2: 40, L: 146.
