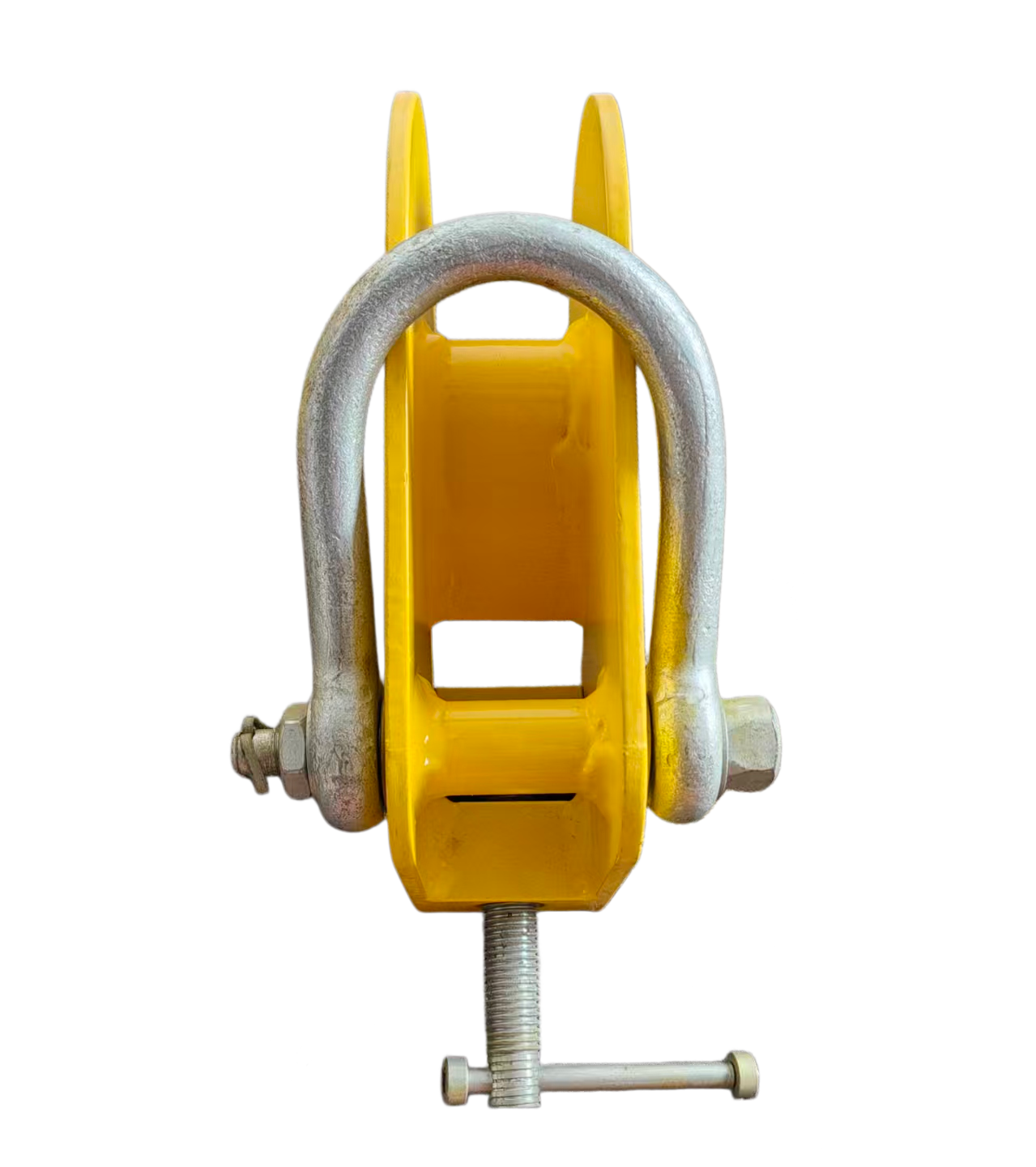

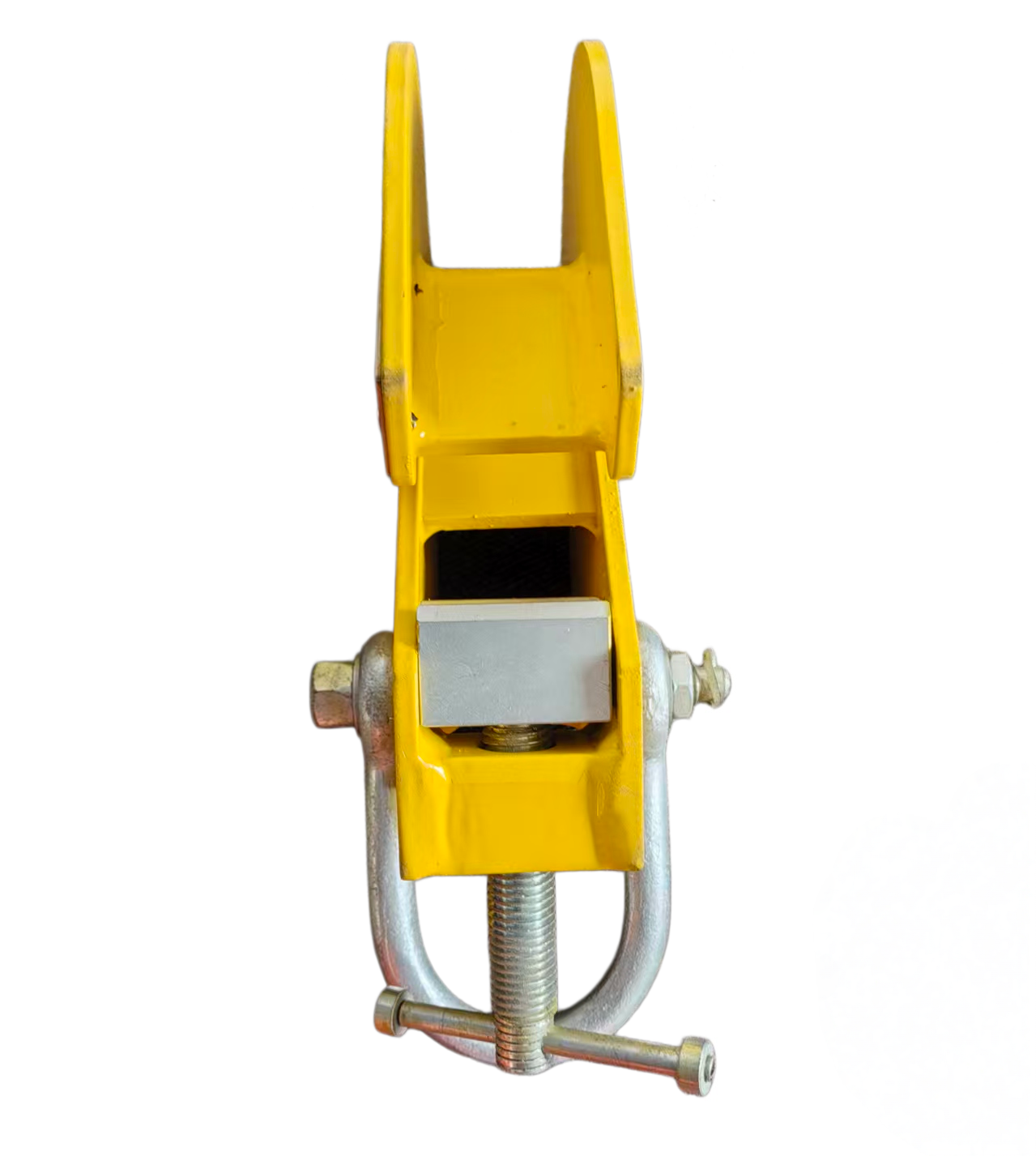

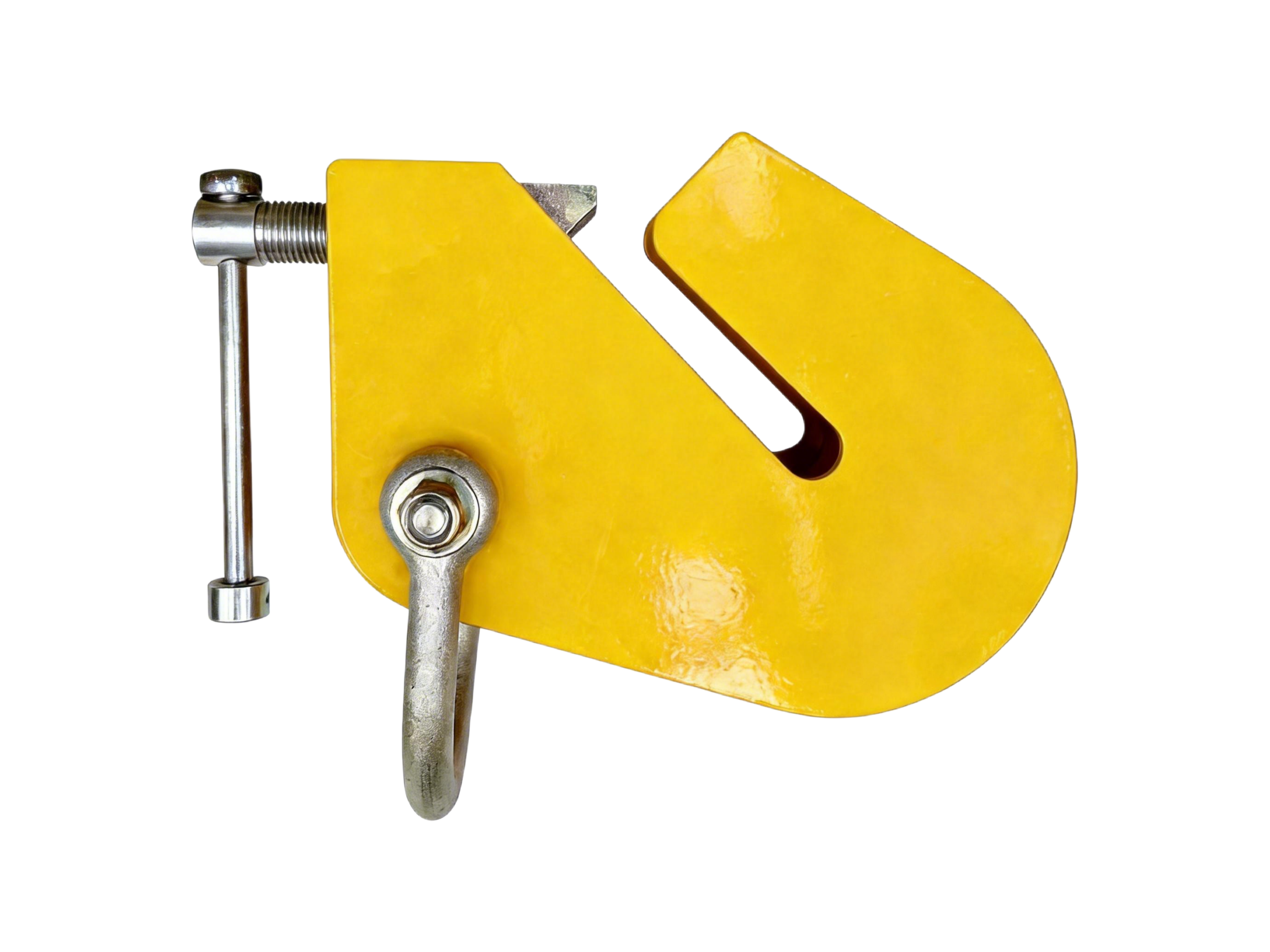

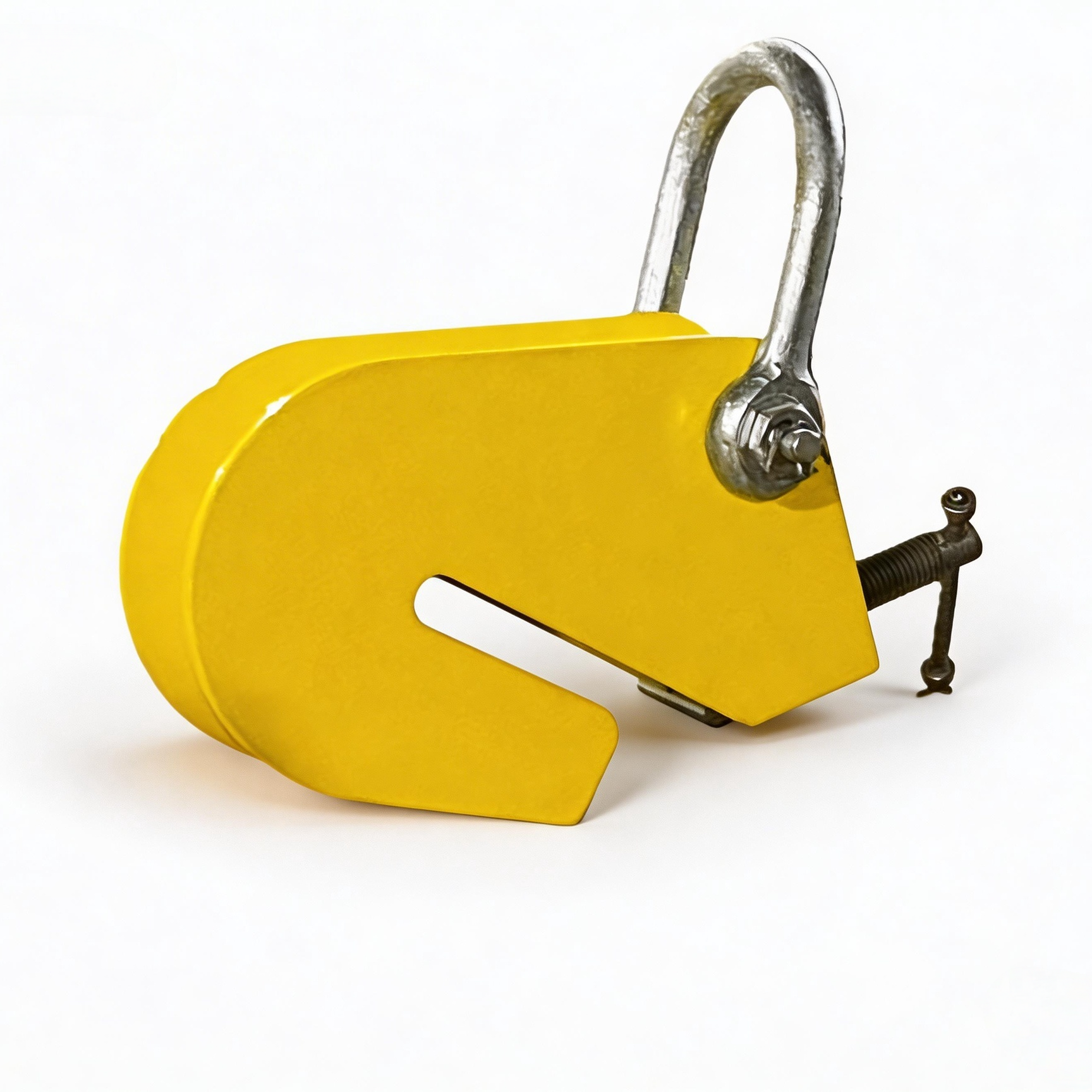

Angle Beam Clamp

This SUPERCLAMP product are designed for safety and versatility - each model being suitable to accommodate a wide range of steel angle sections.
Suitable for a wide range of steel angle sections.
No tools required as the adjusting mechanism is an integral part of the design features, and incorporates an adjusting bar with handle.

• Shackle suspension point.
• V shaped clamping jaws ensures safe and secure grip, the V-Block clamping jaw ensures secure fixation when adequately tightened.
• Designed to accommodate a wide range of steel angle sections.
• Factor of safety: 5:1 for straight pulling and lifting, 4:1 at other angles stated / 4:1 factor of safety.
• Robust construction.
• These units meet and exceed all the requirements within BS EN 13155:2003+A2:2009 and AS4991.

Warning:
Ensure the handle is fully tight before commencing operation.

Model AC1:
• WLL: 508kg,
• A: 4mm, B: 65mm, C: 70mm, D: 102mm, E: 206mm, G: 15mm, H: 258mm, J: 16mm, K: 38-101mm,
• Weight: 4.5kg.

Model AC2:
• WLL: 1016kg,
• A: 6mm, B: 69mm, C: 70mm, D: 96mm, E: 206mm, G: 15mm, H: 258mm, J: 16mm, K: 38-101mm,
• Weight: 5.5kg.

Model AC3:
• WLL: 1524kg,
• A: 8mm, B: 86mm, C: 90mm, D: 73mm, E: 270mm, G: 19mm, H: 346mm, J: 20mm, K: 50-152mm,
• Weight: 11kg.

Model AC4:
• WLL: 3048kg,
• A: 10mm, B: 90mm, C: 102mm, D: 101mm, E: 343mm, G: 25.4mm, H: 490mm, J: 20mm, K: 101-203mm,
• Weight: 21.5kg.
