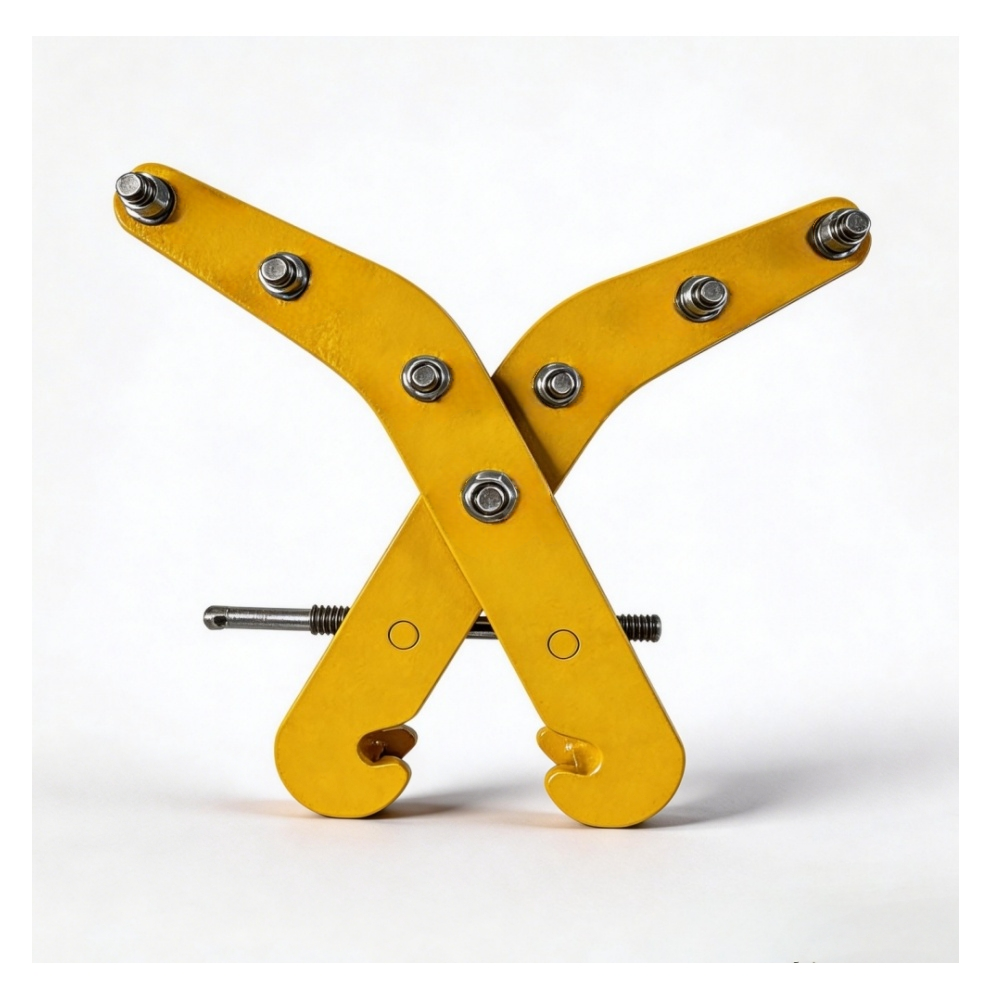

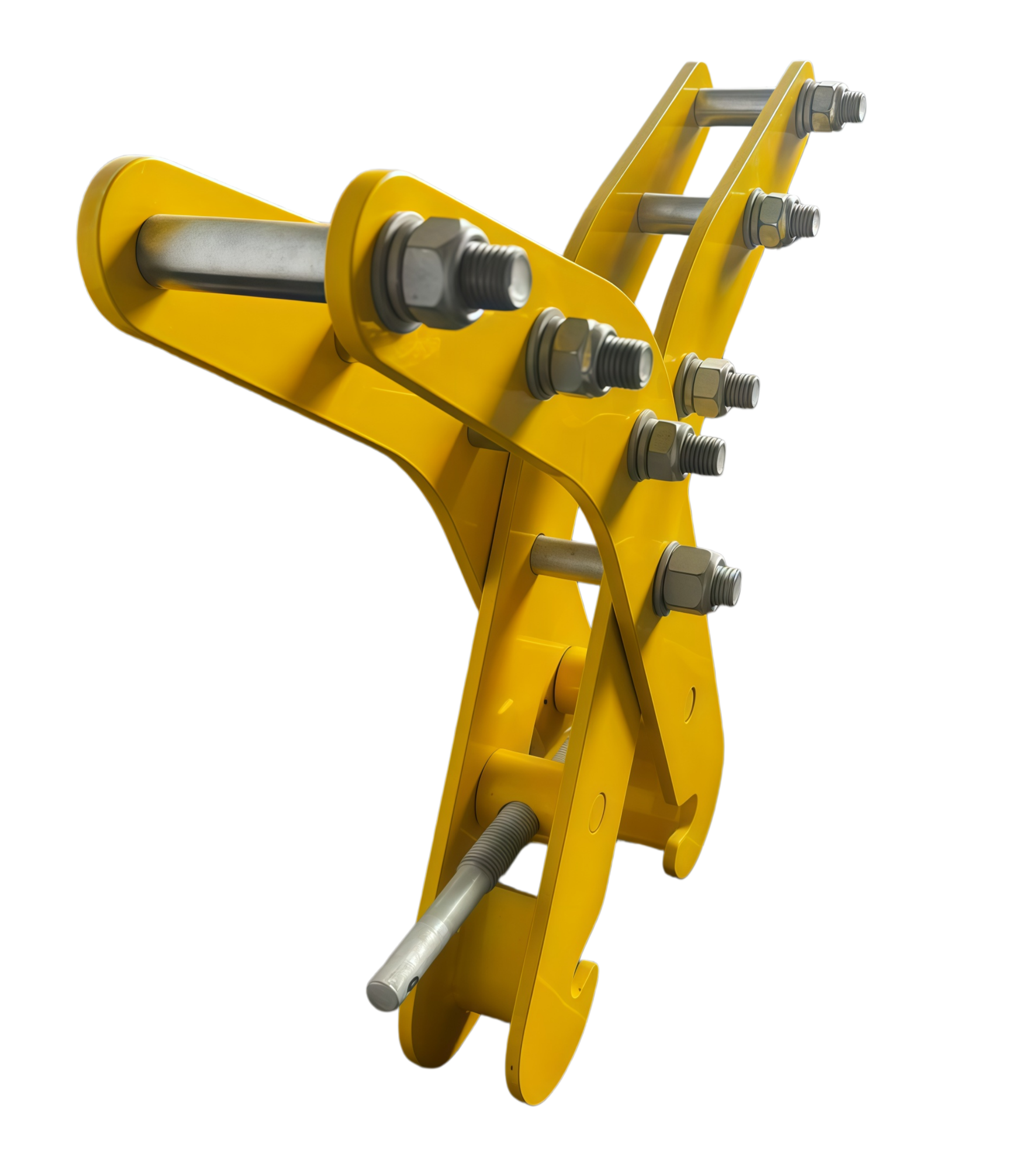

Easy Lift Clamp

Capacity: 200kg -- 3048kg.
Beam clamp incorporating adjustable mechanism for beam ranges: 114 -- 300mm.
Net weight: 6kg -- 16kg.
For top beam flange use only.
125% overload proof load tested.
Meets or exceeds EN13155:2003+A2:2009, ASME B30.20 and other worldwide standards.

WARNING:
• Do Not Exceed Working Load Limits or use this equipment for lifting Flat Plate Sections (not to be used as a plate lifting clamp).
• Must be tightened with socket and wrench.

Option:
• Anti-corrosive painting;Stainless steel version available;
• DNV, BV, ABS, CCS certification;
• TUV, GS, CE, SGS, CQC, CNAS, IAF certification;
• ATEX, explosion-proof version available.
$0.00
SWL:
1/5 ton
2/5 ton
1 ton
2 ton
3 ton
other
  • Easy Lift Clamp
  • Easy Lift Clamp
  • Easy Lift Clamp
  • Easy Lift Clamp

Features

Specification

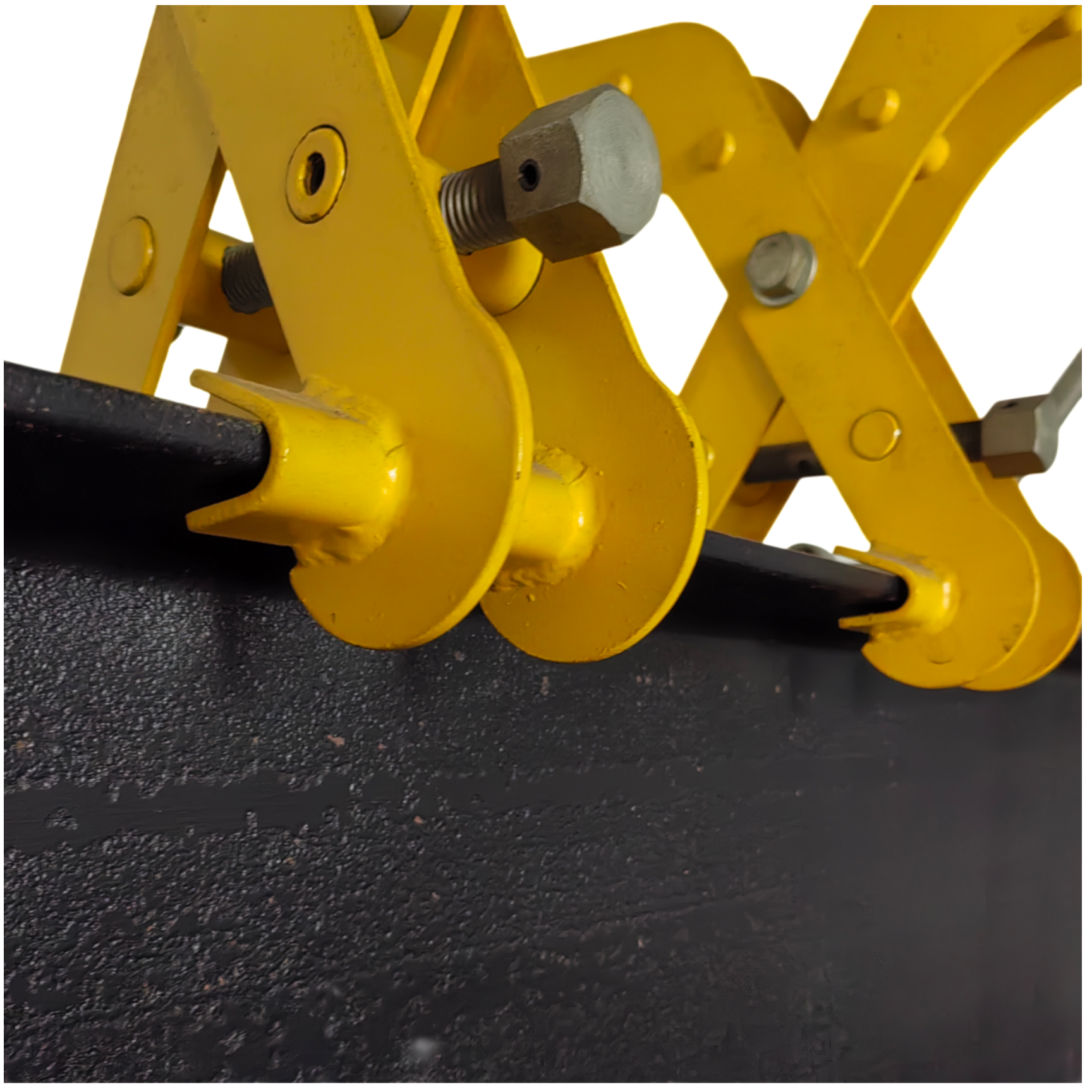

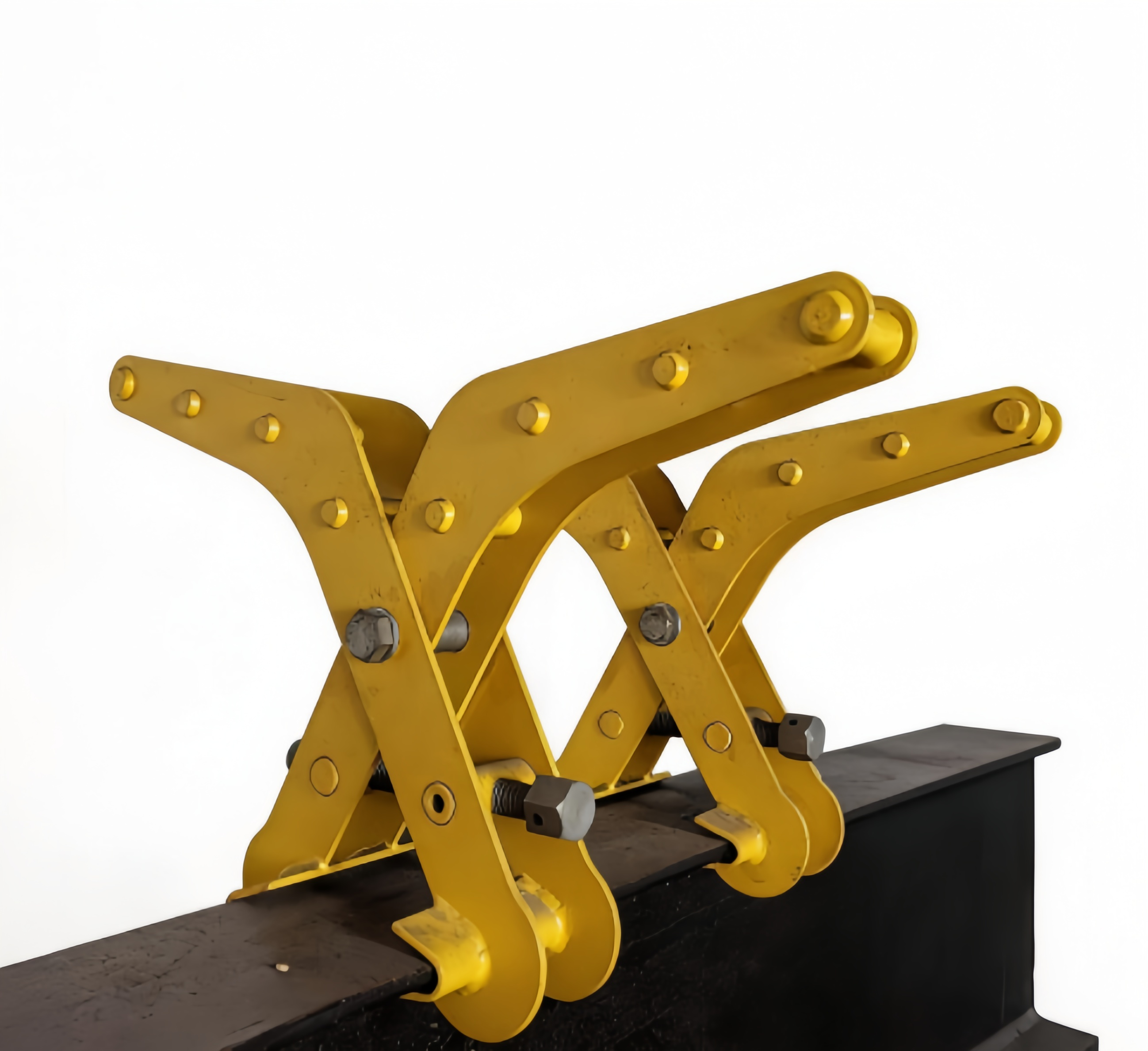

This unique beam clamp is fitted to the top beam flange, designed to reduce accident risks when positioning heavy load-bearing equipment to the lower flange.
This has lifting points each side and can be used independently or together for a balanced lift.Being of light weight construction can be fitted quickly.
It has dual lifting points for independent or balanced lifting, and its lightweight design enables quick installation.

• This unique beam clamp is fitted to the top beam flange, designed to reduce accident risks when positioning heavy load-bearing equipment to the lower flange;
• It features lifting points on each side for independent or balanced lifting, and its lightweight construction allows quick installation;
• Designed for beam top flange use as an anchor for lifting blocks;
• Reduces accident risk when positioning heavy gear;
• Dual lifting points for balanced or separate lifting;
• Lightweight for quick installation;
• Must be tightened with socket and wrench.
