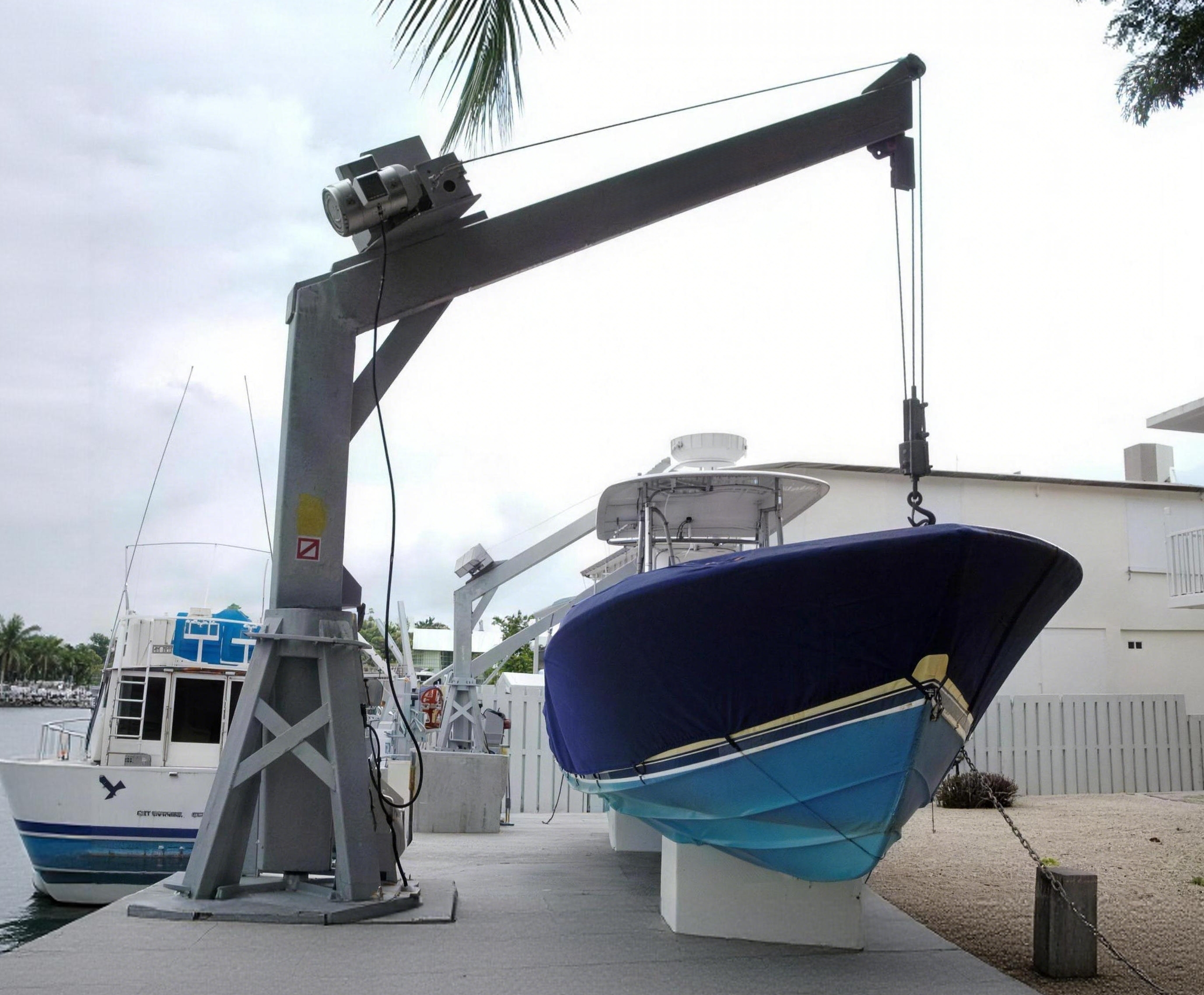

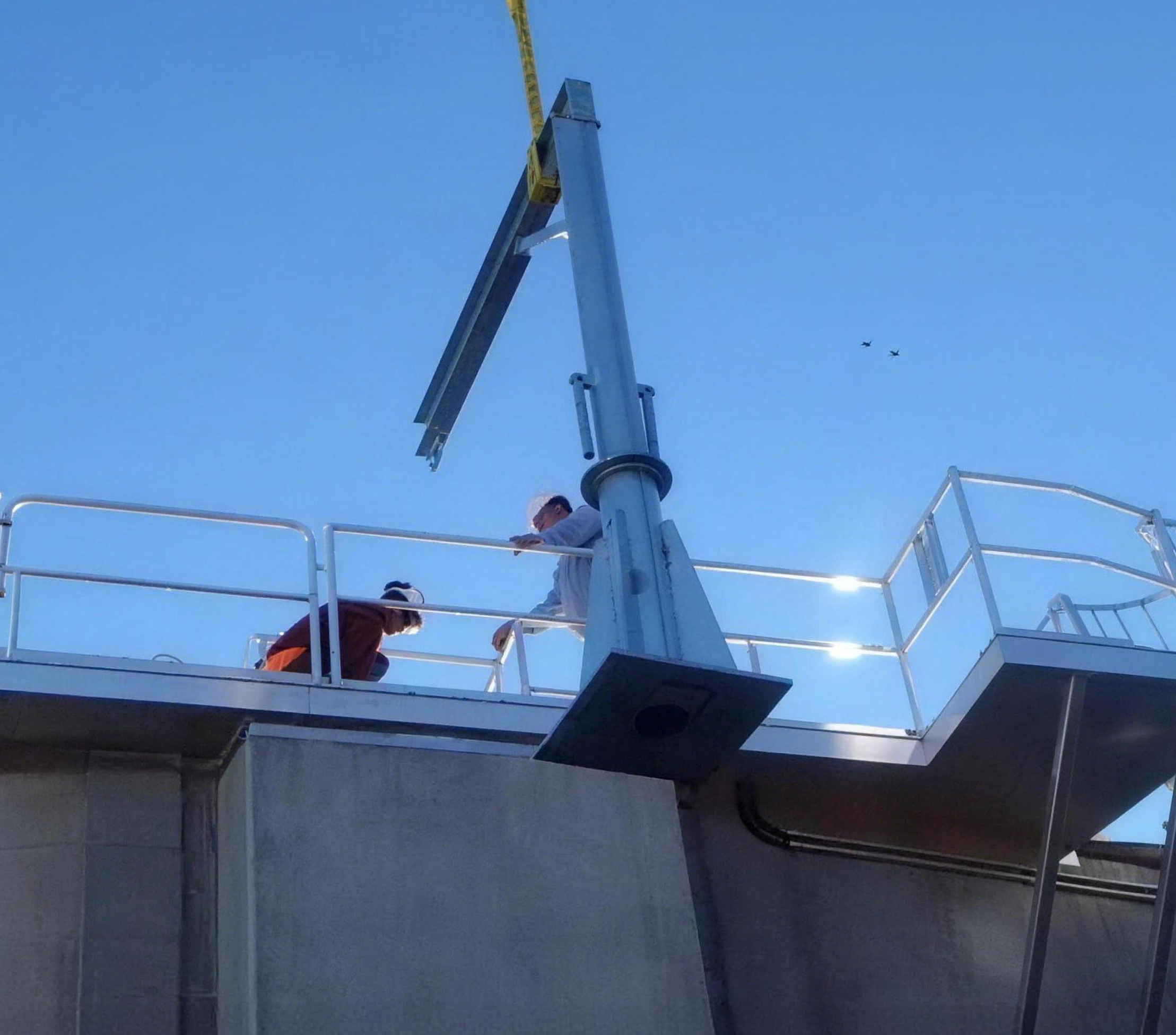

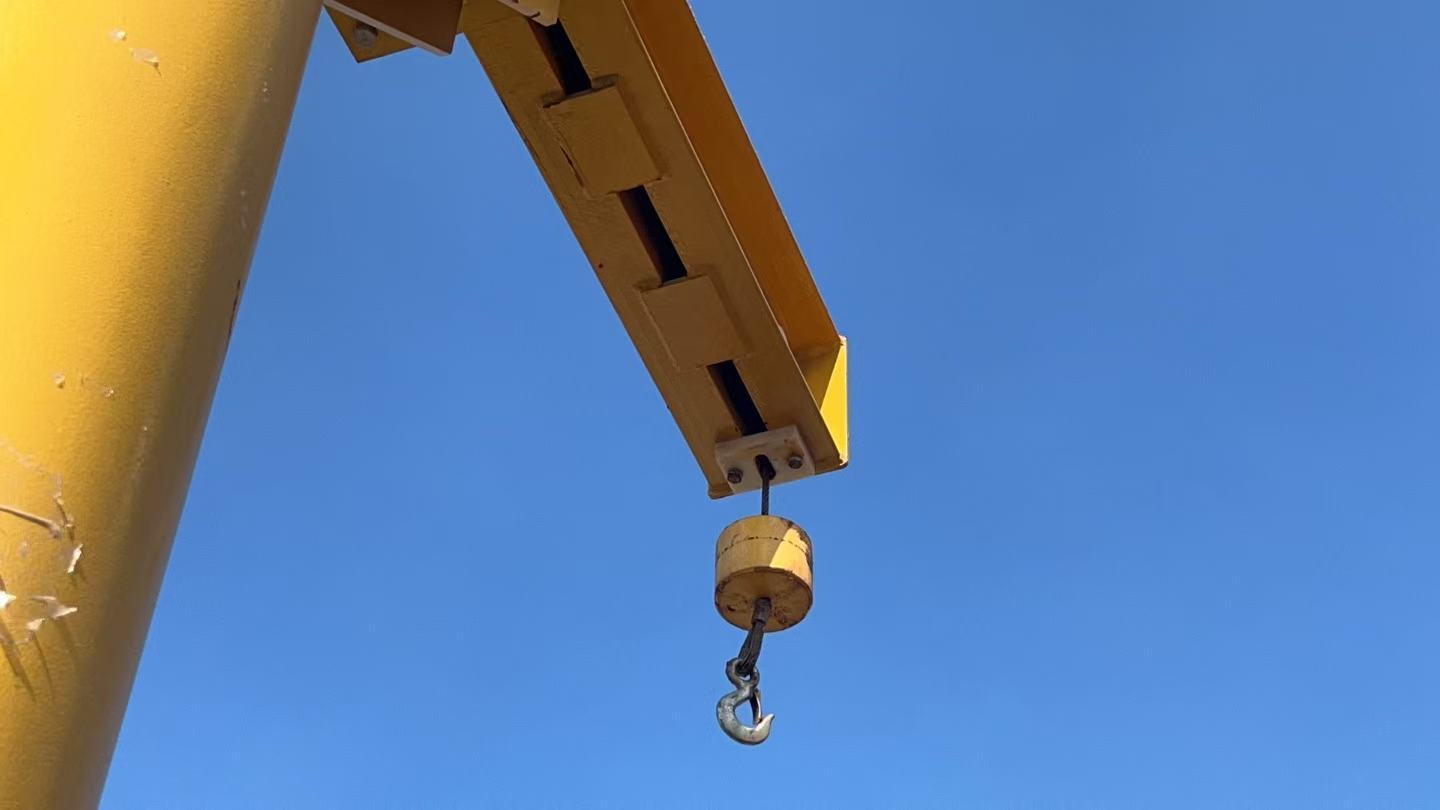

Fixed Davit

Fixed Davit is a specialized light-duty hoisting equipment for marine, workshop and narrow space use.
It consists of fixed column, rotating arm, hoisting mechanism and control system.
Compact, lightweight, high-strength and easy to operate.
Widely used for lifting lifeboats, small equipment and cargo on ships, offshore platforms, warehouses and other places.
• Fixed base ensures high stability and is suitable for permanent installation.
• 180°/270°/360° rotation with heavy-duty bearing enables smooth and accurate positioning; rotation lock is optional for safety.
• Telescopic boom with adjustable angle provides precise working radius and height.
• Electric, pneumatic, hydraulic and manual winches are available.
• 125% and 150% test load are available.

・Capacity: 1T, 1.5T, 2T, 3T, 5T, other;
・Arm length: 2--10 m;
・Height of Lifting: 2--10 m;
 ・Rotation Degree: 180°, 270°, 360° ;
・Power: 220v, 240v, 380v, 400v, 415v, 440v, 460v, 480v, 525v / 3P / 50hz, 60hz;
・Control Voltage: 24v, 36v, 48v, 110v, 220v;
・Lifting Speed: Customized;
・Trolley Speed: Customized;
・Revolving Type: Manual / Electric;
 ・Winch: Customized;
・Gear Motor: Customized;
 ・Control Model: Manual / Electric;
・IP/Insulation Class: IP55/F Class, IP65, IP66 and H class is optional.
