Name: Marine Ultra Low Headroom Trolley Hoist
Brand: LIFORD INDUSTRIES CO.,LTD
Availability: InStock
Rating: 5 (1 reviews)

Marine Ultra Low Headroom Trolley Hoist

Capacity: 1t, 2t, 3.5t, 5t, 7.5t, 10t, 12t, 15t, 20t (over 12t are not held in stock and are manufactured upon request).
Proof load: 1.5 times the working load limit (WLL).
Safety factor: 4:1.
Standard lift: 3m HOL; extra weight per metre available per capacity.
Load chain: Grade T (8) in accordance with BS EN818-7.
Temperature range: -40°C to +120°C.
Corrosion protection: ISO 12944 Category C5 marine paint.
End stops: fitted as standard.
Lifting points: Grade 8 at all four corners.
Applicable standards: ASME B30.20 Chapter 6 Clamps, EN13157:2004 + AI:2009.

Options:
• Overload limiters (available on request).
• Chain bags (available on request).
• Overload limiters (available on request).

SWL:

1 ton

2 ton

3.5 ton

5 ton

7.5 ton

10 ton

12 ton

15 ton

20 ton

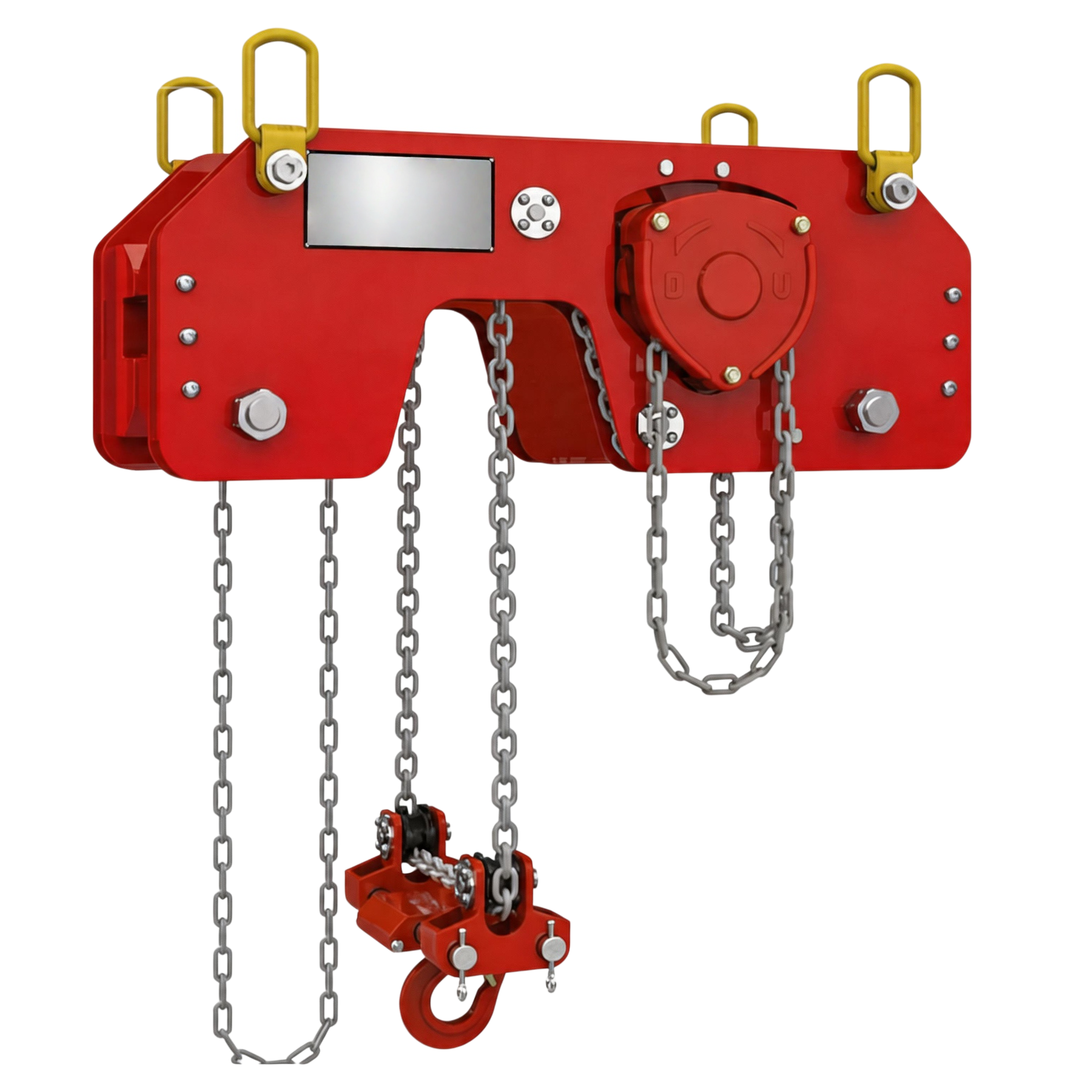

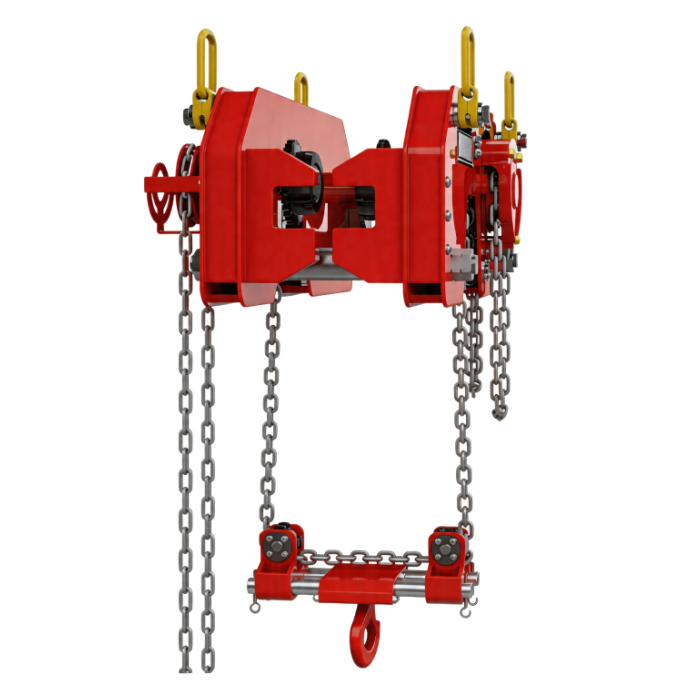

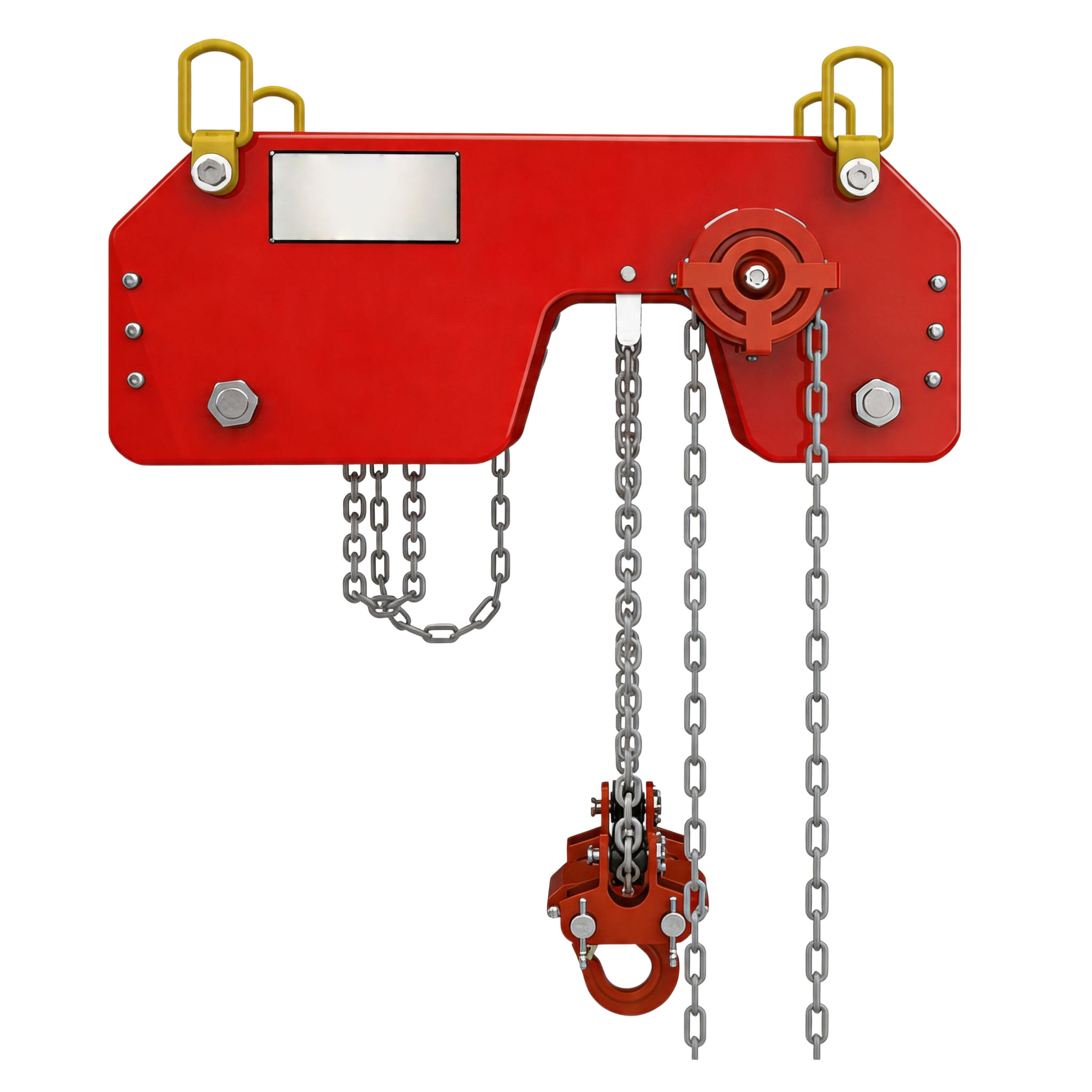

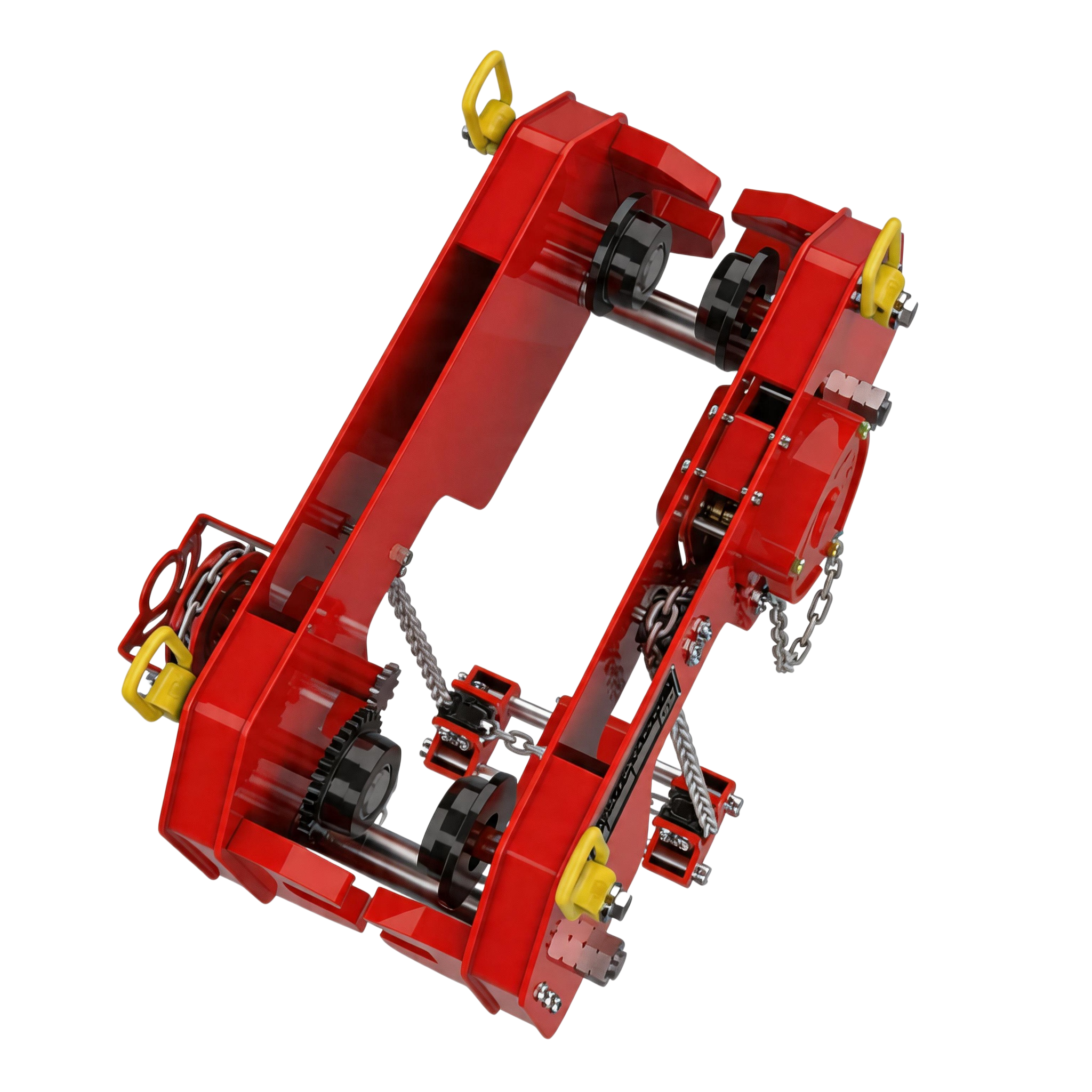

This product is a marine ultra low headroom trolley hoist (ULHT) designed for professional lifting applications.
It is designed for applications where maximum lifting height is required within minimal available space.
It is suitable for use on profile beams in industrial and light to medium offshore applications.
The hoist combines compact design with high performance and reliable operation under frequent working conditions.

• Complies with ASME B30.20 Chapter 6 Clamps and EN13157:2004 + AI:2009.
• Proof tested at 1.5 × WLL.
• Safety factor 4:1.
• Operating temperature range: -40°C to +120°C.
• Standard end stops.
• Marine grade corrosion protection to ISO 12944 Category C5.
• Grade 8 lifting points at each corner for safe manual handling.

Installation Requirements:
• Verify beam width is within the rated adjustment range before installation.
• Maintain 2mm–2.5mm clearance between wheel flange and beam flange using spacer washers.
• Ensure load chain and sheave alignment is correct.
• Fully tighten all fasteners prior to use.
