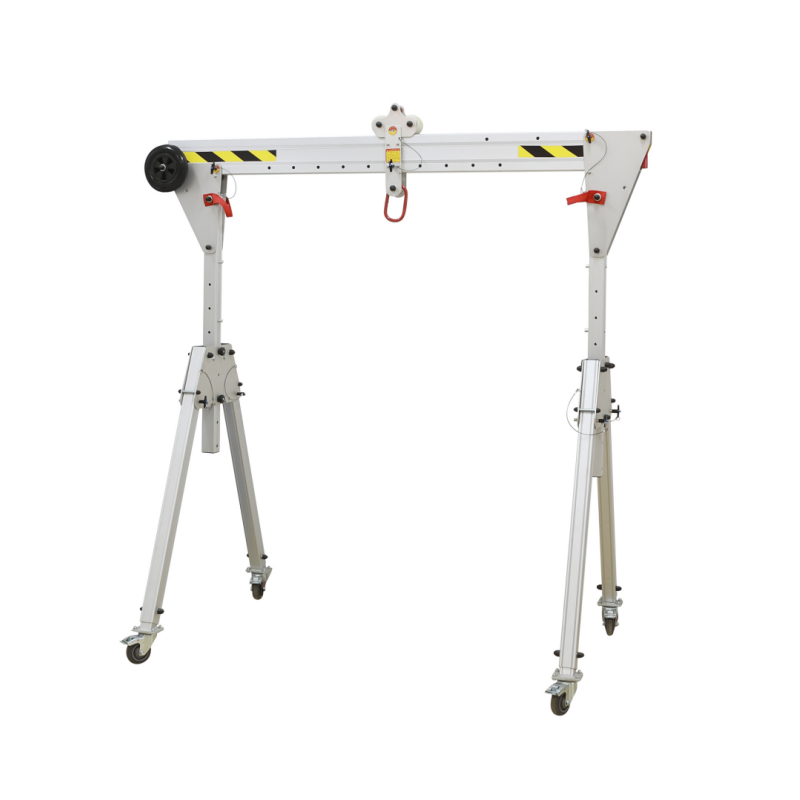

Aluminium Portable Rapid Gantry

The portable rapid gantry providing a versatile lifting solution for goods and personnel.
Quick-release pins for tool-free assembly, ideal for versatile on-site use.
Easy to use:
– Adaptable, multipurpose trolleys (goods and personnel rated).
– Load bearing, lockable castors for easy positioning (ACOP advises no gantry movement under load except where a competent person has undertaken a suitable Risk Assessment Method Statement and has deemed appropriate)

• Innovative quick-release trolley/sheave carrier, installable in seconds.
• Load-bearing, lockable castors for easy positioning.
• Fall arrest capability reduced when goods load is applied simultaneously.
• All components fold neatly for compact stowage, fitting in a standard service van.
• Quick-release pins for tool-free assembly in under a minute.

• Capacity:
500kg (goods WLL),
250kg (personnel WLL, up to 3 persons).
• Net Weight: from 33kg (model-dependent).
• Standard Beam Lengths (A, MM):
- PRG250/300/400 = 2000
- PRG500 = 2376
- PRG1000/2000/3000/4000 = 4000.
• Span (Min-Max, H, MM):
- PRG250/300/400: 1785 - 2095.
- PRG500: 1850 - 2050.
- PRG1000/2000/3000/4000: 2028 - 2928mm.
• Height (Min-Max, C, MM):
- PRG250/300/400: 1200 - 1800mm.
- PRG500: 1100 - 1750mm.
- PRG1000/2000/3000/4000: 2700 - 3500mm.
