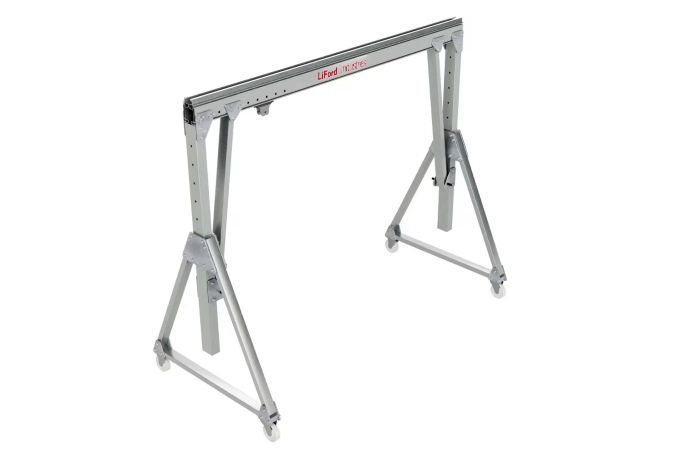

Aluminium Portable Gantry

It is equipped with multiple high-performance features, making it an ideal davit crane for diverse working scenarios.
It enables smooth 360° load lifting, lowering and rotation, with optional bearing and 12-position lock to support heavy-duty handling; quick-release fittings ensure easy disassembly and excellent portability.

• 360° swivel-locking castors as standard for flexible positioning;
• Simple manual height span adjustment with 200mm / 150mm incremental tuning;
• Ultra-safe, fully encapsulated captive trolley for stable load handling;
• Flat-packed design for convenient shipping and storage;
• Bolted structure with lateral beam and leg bracing for complete lifting stability;
• Corrosion-resistant anodized finish, easy to clean and suitable for clean room applications;
• Easy transport without compromising structural strengths;

• Safe Working Load (WLL, model-dependent): 1000kg / 2000kg / 3000kg / 5000kg;
• Standard Beam Lengths (WLL dependent): 2500mm / 3000mm / 3920mm / 4570mm / 5500mm / 6000mm / 8400mm / 9000mm;
• Clear Operating Span: Beam length - 920mm;
• Span Adjustment: Infinitely manually adjustable;
• Beam Height Range: 2500mm to 9000mm (adjustable in 200mm/150mm increments);
• Height Adjustment: Manual for small frames; Geared Wheel / Ratchet system for larger gantries;

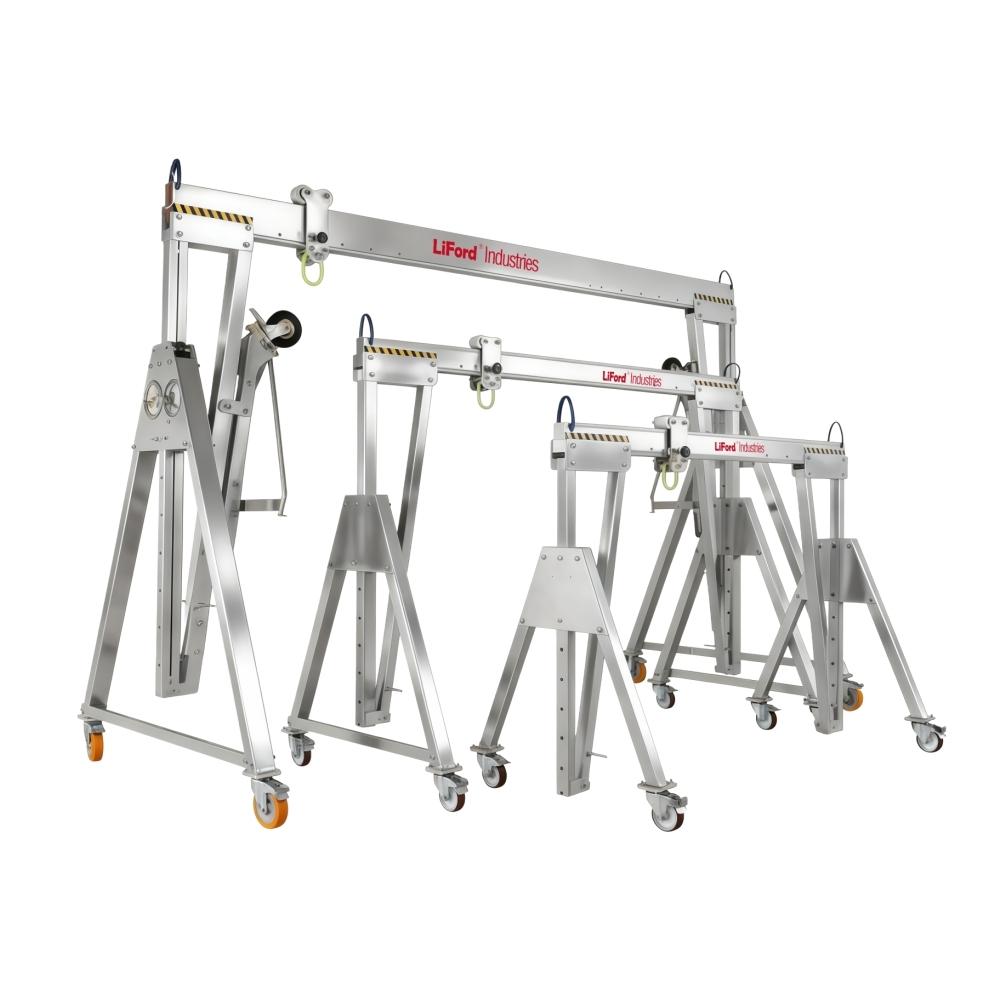

• Standard Frame Configurations: S (Small) / M (Medium) / I (Intermediate) / T (Tall);
• Leg Design: Foldable for easy dismantling/storage; No leg bracing fitted on 'S' systems;
• Main Beam: Eurosystem ALU profile;
• Trolley: Supplied with fully enclosed captive masterlink push trolley;
• Castors: 360° swivel-locking as standard; All Terrain castors optional;
• Optional: Power feeding line and main isolator.
