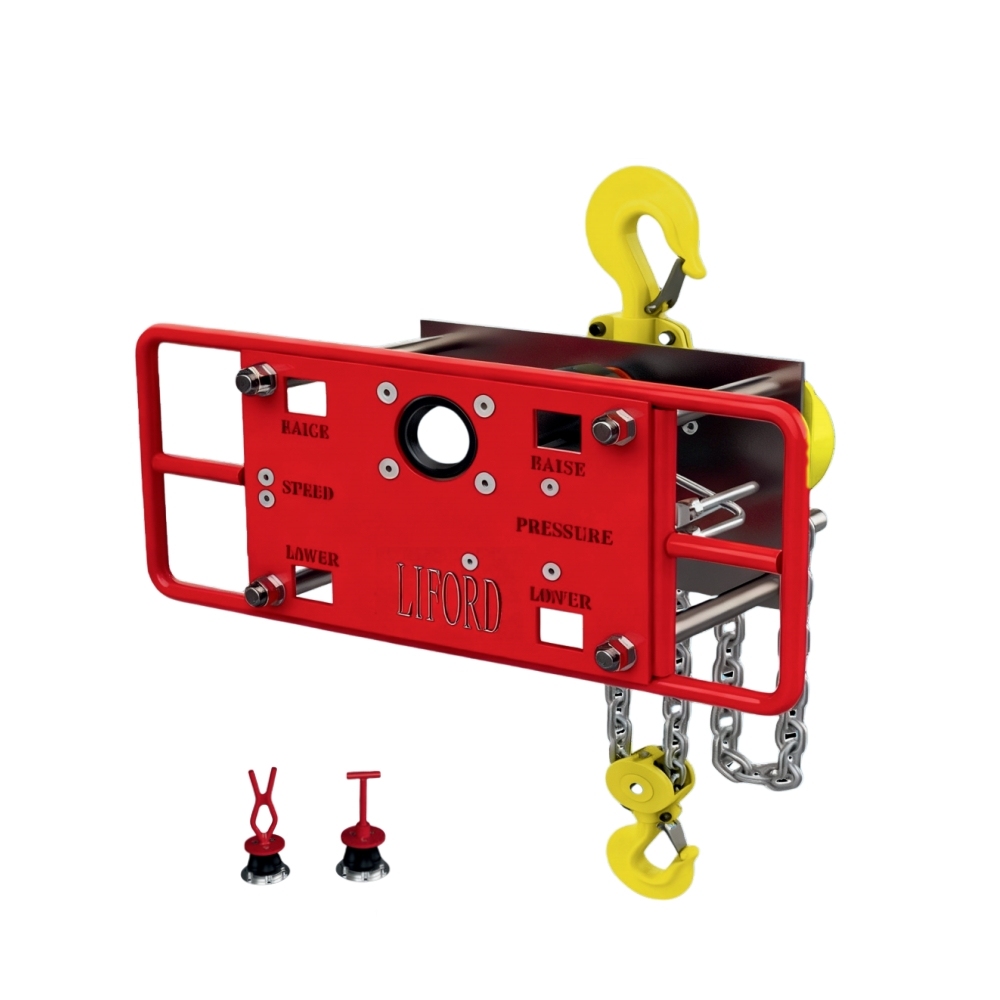

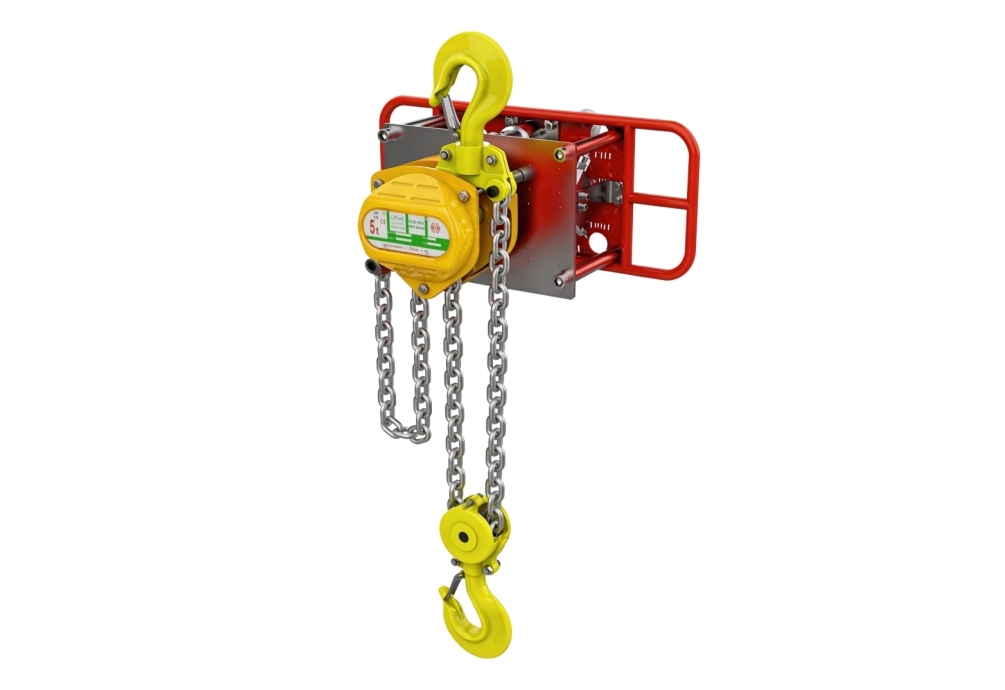

ROV Chain Hoist (Hydraulic Interface)

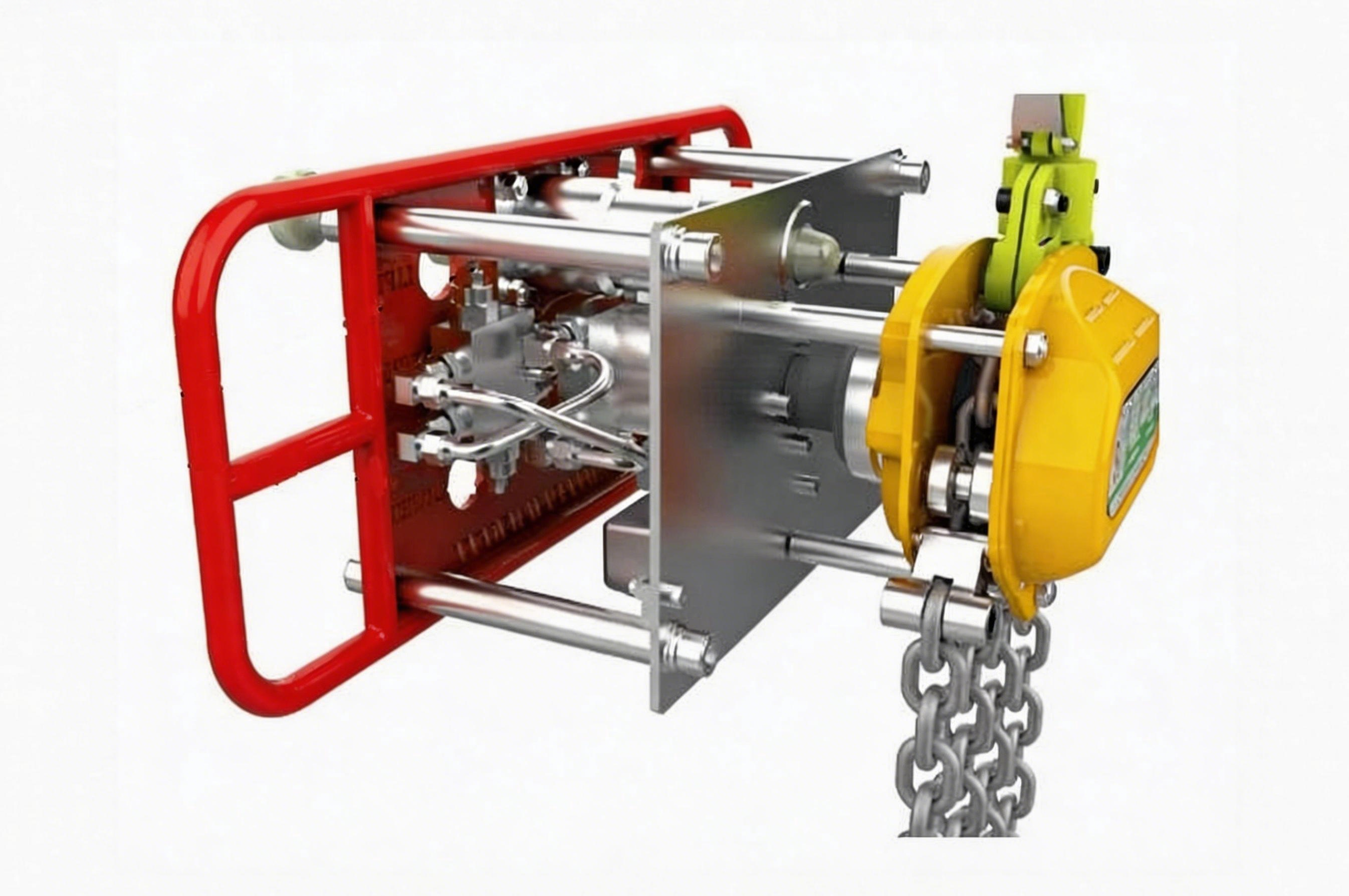

The ROV Chain Hoist ( Hydraulic Interface ) features a bigger framework to house the hydraulic elements, this version has a quick disconnect coupling and is typically used with a hot stab tool. With quick and compact hydraulic connections thischain block set up can be efficiently controlled with a ROV vehicle, deck HPU or subsea manifold.

• Corrosion protection: Finished with specialist AkzoNobel Interpon Redox triple-layer marine-grade paint, meeting ISO 12944 C5 for superior offshore corrosion resistance.
• ISO 9227 salt spray test: Passes1,500 hours of corrosion, blistering and adhesion testing, with maximum 1.6mm corrosion creep from scribe marks.
• Fixings and fasteners: all made from stainless steel.
• Standard ROV hydraulic interface (hot stab quick disconnect coupling) .
• Quad pawl technology for optimum safety and precision control.

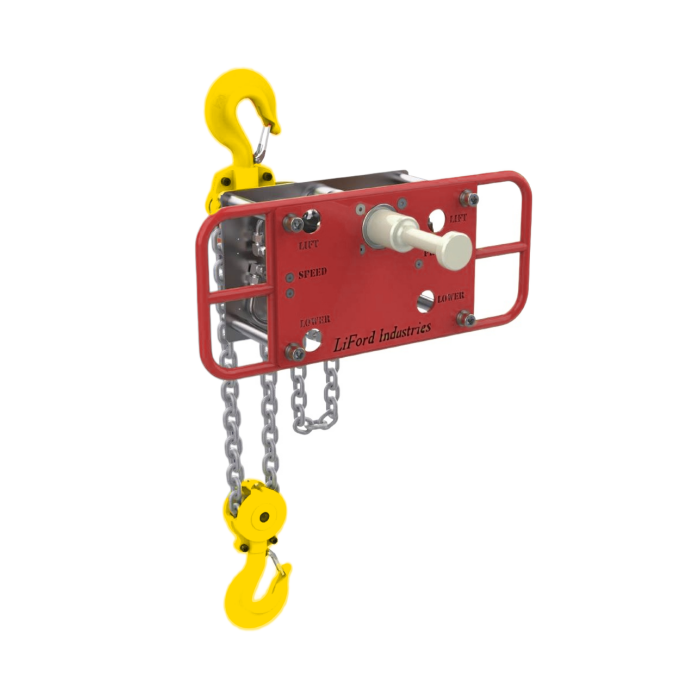

• Can be fitted with a hand wheel which facilitates manual adjustment to the load chain when topside.
• Hyperbaric tested at 3000 metre water depths.

RH300:
• WLL tonnes: 3;
• No. of Falls: 1;
• A=460mm, B=676mm, C=286mm, D=520mm, E=43mm, F=80mm, G=380mm, H=387mm, I=309mm;
• 3m HOL weight: 65kg,;
• extra chain weight: 2.24kg/m.

RH500:
• WLL tonnes: 5;
• No. of Falls: 2;
• A=460mm, B=676mm, C=286mm, D=600mm, E=51mm, F=80mm, G=380mm, H=419mm, I=257mm;
• 3m HOL weight: 76.4kg;
• extra chain weight: 4.48kg/m.

RH1000:
• WLL tonnes: 10;
• No. of Falls: 4;
• A=460mm, B=676mm, C=286mm, D=760mm, E=64mm, F=80mm, G=380mm, H=471mm, I=199mm;
• 3m HOL weight: 106.9kg;
• extra chain weight: 8.96kg/m.

RH1500:
• WLL tonnes: 15;
• No. of Falls: 6;
• A=515mm, B=676mm, C=286mm, D=1000mm, E=86mm, F=75mm, G=440mm, H=517mm, I=159mm;
• 3m HOL weight: 154.7kg;
• extra chain weight: 13.44kg/m.

RH2000:
• WLL tonnes: 20;
• No. of Falls: 8;
• A=490mm, B=900mm, C=286mm, D=1150mm, E=80mm, F=102mm, G=388mm, H=544mm, I=352mm;
• 3m HOL weight: 187.5kg;
• extra chain weight: 17.92kg/m.

Load Chain: 10.0mm diameter for all models.
