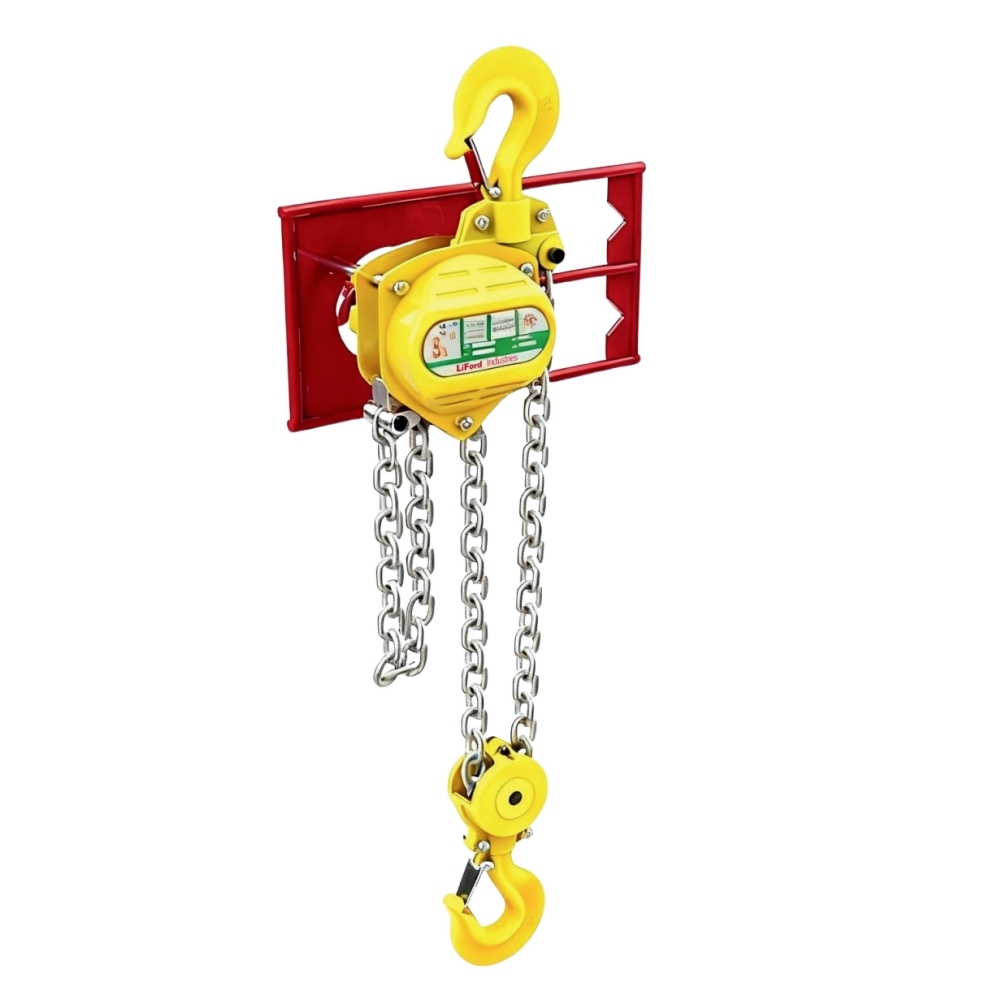

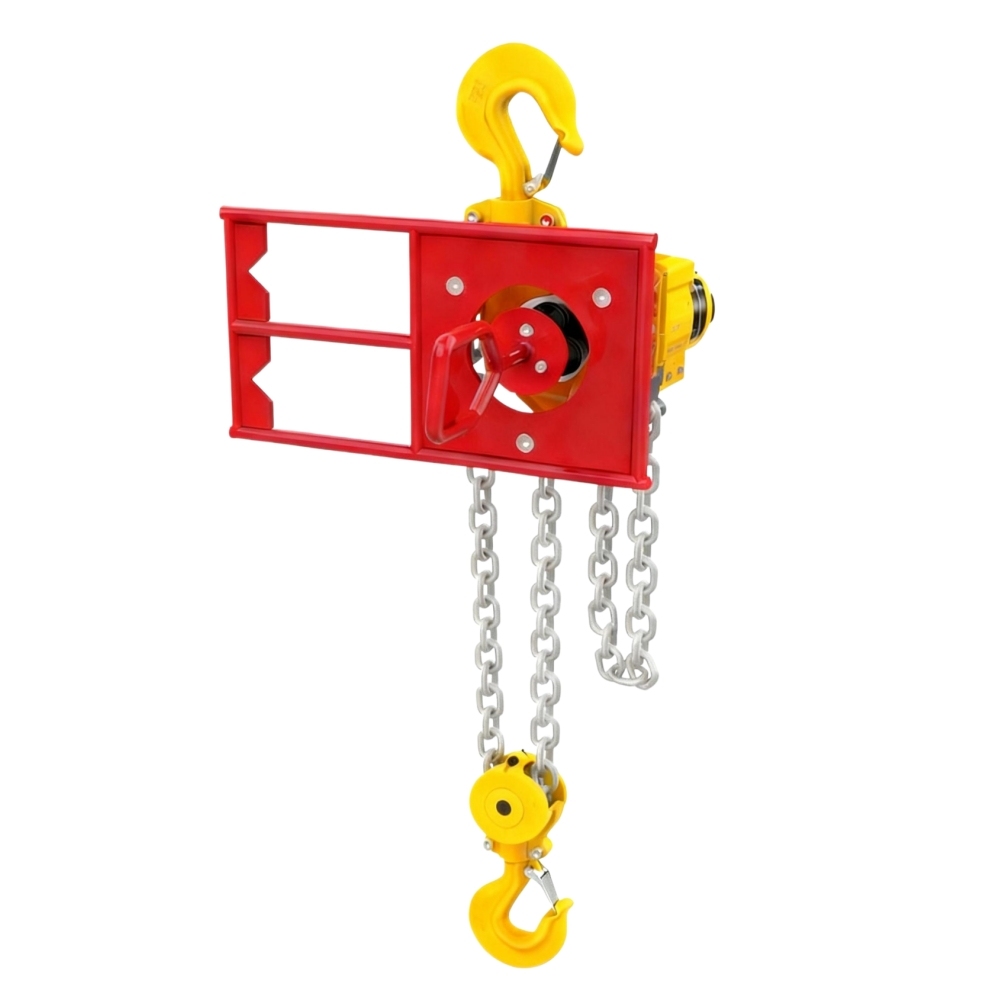

ROV Chain Hoist (Manual Interface)

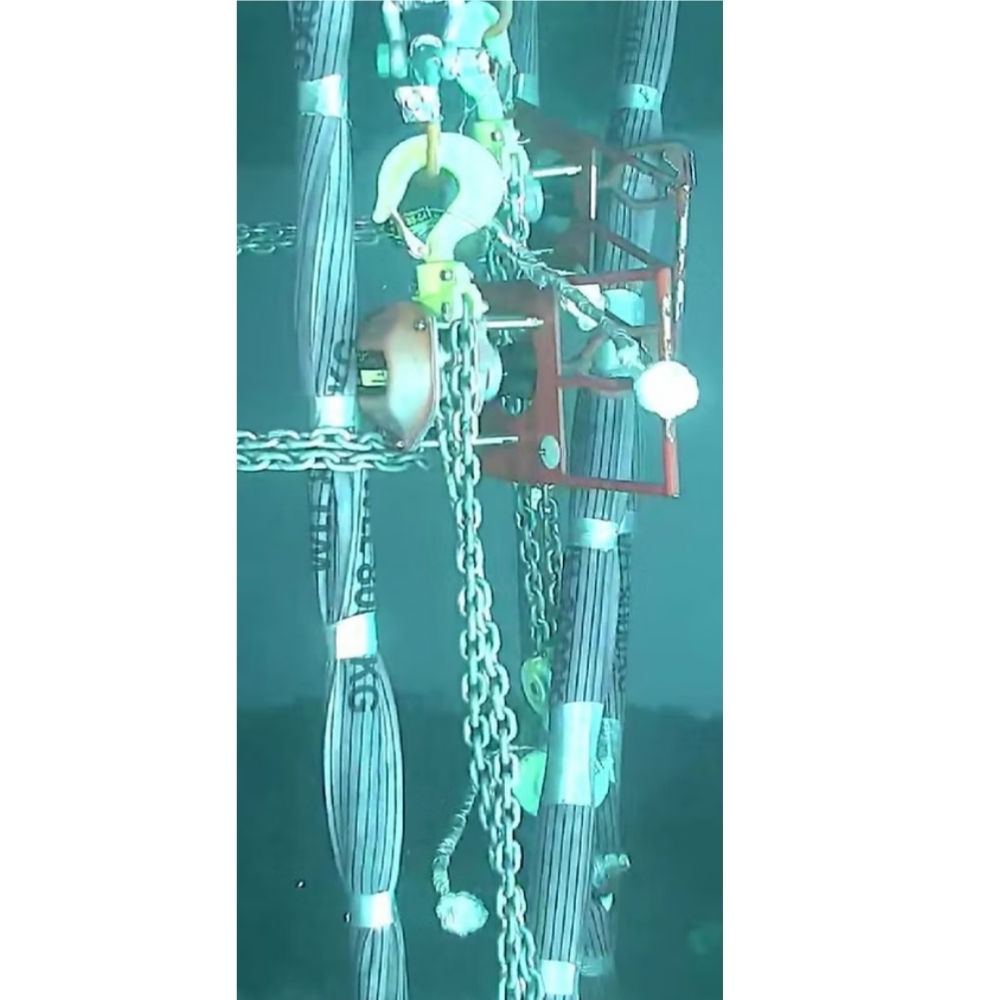

This manual ROV operable chain hoist for subsea and offshore deep‑sea lifting, operated by ROV via multiple interface options.
Ideal for oil gas, subsea construction, marine salvage, renewable energy, underwater maintenance, and civil engineering projects.

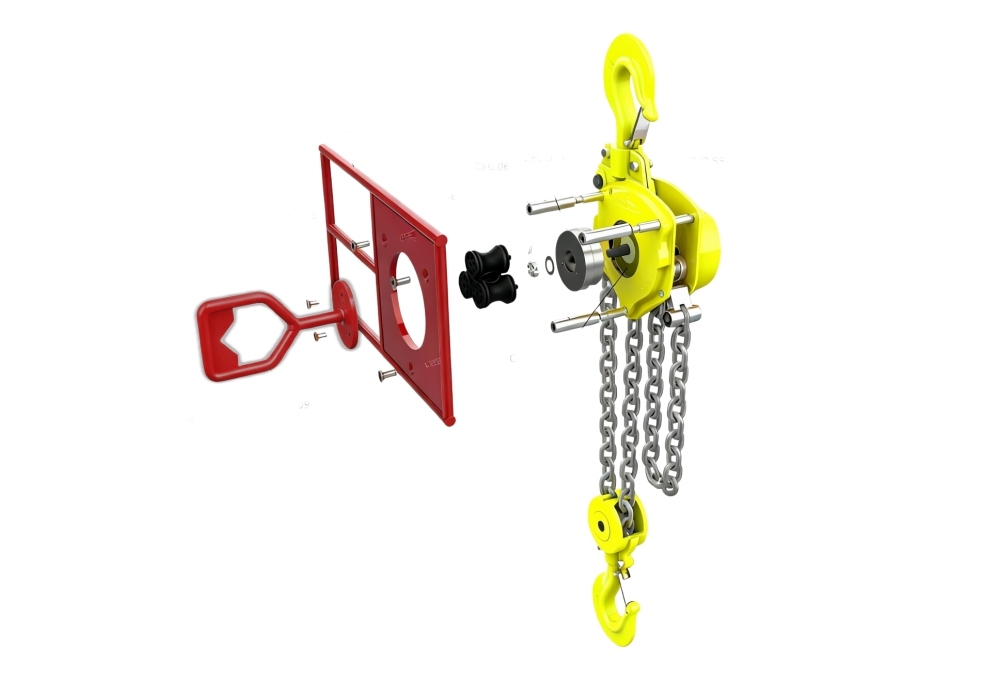

• ROV operable with multiple interface choices.
• Patented quad‑pawl (QP) brake system for fail‑safe load holding.
• High corrosion resistance for subsea saltwater environments.
• Safe for light load operation down to 2% WLL.
• Heavy‑duty safety latches on hooks.
• Hooks with overload indicators and full traceability marks.
• Grade T(8) load chain conforming to international standards.
• Tested for cross haul/fleeting use up to 60° without derating.
• Low operating torque, easy ROV handling.
• Compact, serviceable design for long service life.

RM300:
• WLL: 3t, 1 fall, load chain 10.0mm,
• Dims A: 507mm, B: 516mm, C: 292mm, D: 520mm, E: 37.5mm,
• Mass: 39.0kg, Chain mass: 2.2kg/m.

RM500:
• WLL: 5.0t, 2 falls, load chain 10.0mm,
• Dims A: 507mm, B: 516mm, C: 292mm, D: 600mm, E: 43.0mm,
• Mass: 46.0kg, Chain mass: 4.4kg/m.

RM700:
• WLL: 7t, 3 falls, load chain 10.0mm,
• Dims A: 507mm, B: 512mm, C: 292mm, D: 740mm, E: 53.0mm,
• Mass: 66.0kg, Chain mass: 6.6kg/m.

RM1000:
• WLL: 10.0t, 4 falls, load chain 10.0mm,
• Dims A: 507mm, B: 516mm, C: 292mm, D: 760mm, E: 53.0mm,
• Mass: 77.0kg, Chain mass: 8.8kg/m.

RM1500:
• WLL: 15.0t, 6 falls, load chain 10.0mm,
• Dims A: 537mm, B: 516mm, C: 292mm, D: 1000mm, E: 80.0mm,
• Mass: 124.0kg, Chain mass: 13.2kg/m.

RM2000:
• WLL: 20.0t, 8 falls, load chain 10.0mm,
• Dims A: 552mm, B: 600mm, C: 292mm, D: 1150mm, E: 80.0mm,
• Mass: 165.0kg, Chain mass: 17.6kg/m.
